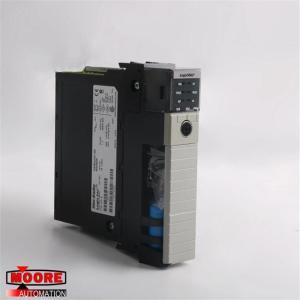

1756-L63 1756L63 AB AB ControlLogix Logix5563 Processor
⇒ Click here for good price 1756-L63
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-L63 |
| Alternate Part Number | 1756-L63 |
| Description | MOTOR SERVO |
| Dimennsions | 3.5x14x15cm |
| Weight | 0.34kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-L63 is a ControlLogix controller which comes in Series
A and Series B versions. This controller can perform 3 major
controller tasks that are 32 programs per task, 100 programs per
task, and event tasks and all of these tasks are event triggers.
The 1756-L63 has full support for controller redundancy, except for
motion applications. It can also support a maximum of 250
controller connections. The 1756-L63 has an available memory
capacity of 8 MB for data and logic storage and a 478 KB I/O memory
capacity. The users can also add a backup memory for this
controller. Note that the only nonvolatile memory that users can
use is the AB 128 MB 1784-CF128 CompactFlash memory card. It has a
maximum analog I/O count of 4000 and a maximum digital I/O count
and total I/O count of 128,000.
The 1756-L63 controller has a built-in RS-132 serial communication
port. The communication options available for this controller
include the DeviceNet, ControlNet, EtherNet/IP, SynchLink, Remote
I/O, Data Highway Plus, and third-party process and device
networks. Serial port communications modules that this controller
supports are the Modbus via logic, DH-485, DF1 radio modem, ASCII,
and the DF1 full/half-duplex modules. The continuous isolation
voltage of the 1756-L63 controller is 30 Volts and it has a basic
insulation type. It has also been type-tested at 720 Volts DC for
60 seconds. It has a power dissipation of 3.5 W and a thermal
dissipation of 11.9 BTU/hour. Its current draw at 5.1 Volts DC is
1200 mA and its current draw at 24 Volts DC is 14 mA. It has a
vibration of 2 g at 10 to 500 Hertz. The 1756-L63 controller has an
operating shock of 30 g and a non-operating shock of 50 g. It also
has an operating temperature range of 0 to 60 degrees Celsius and a
non-operating temperature range of -40 to 85 degrees Celsius. It
also has a maximum surrounding air temperature of 60 degrees
Celsius.
