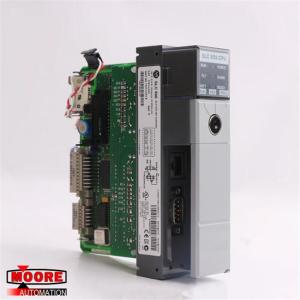

1747-L533 1747L533 AB AB SLC 5/03 Processor
⇒ Click here for good price 1747-L533
| Brand/Manufacturer | AB/USA |
| Part Number | 1747-L533 |
| Alternate Part Number | 1747-L533 |
| Description | MOTOR SERVO |
| Dimennsions | 3.5x13x14.5cm |
| Weight | 0.26kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1747-L533 is an SLC 5/03 Processor that is a part of SLC 500
system. It is a small, simple and pocket-friendly processor with a
wide range of applications such as small process control, material
handling, HVAC control, etc. It contains a PLC-5 processor-based
advanced instruction set. It can be stand-alone or distributed
throughout the system for SCADA applications.
The 1747-L533 processor has total user memory of 32K words with 28K
words for data/program and 4K words for data. It has up to 4096
inputs, 4096 outputs, and 480 local analog I/Os. It has a program
scan time per keyword of 1 ms and 0.225 ms of I/O scan time. The
1747-L533 has a backplane current of 500 mA at 5V DC and 175 mA at
24V DC. It has a maximum 2 local I/O chassis with a maximum of 30
module I/O slots in the local I/O chassis. For communication, the
1747-L533 uses DH-485 and RS-232 ports that can be configured for
connection to a 1761-NET-AIC converter. For programming, it
supports RSLogix 500 software. The 1747-L533 has a standard
battery-backed RAM and a Flash backup memory. With this processor,
a remote I/O scanner module and a DeviceNet Scanner module can be
installed to configure the I/O via a universal remote link or a
DeviceNet network.
The 1747-L533 processor provides 0.44 ms bit-instruction execution
time and 10 times the overall system throughput than its
competitors do. It has various additional capabilities such as
online programming, flash memory upgrades, floating-point math, a
built-in real-time clock, key-switch, and a calendar. The 1747-L533
is intended for use in a clean and dry industrial environment with
a 0 - 60 °C operating temperature and a 30g operating shock.
