1756-L65 1756L65 AB AB ControlLogix Logix5565 Processor
⇒ Click here for good price 1756-L65
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-L65 |
| Alternate Part Number | 1756-L65 |
| Description | MOTOR SERVO |
| Dimennsions | 14.6x13.2x3.3cm |
| Weight | 0.35kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

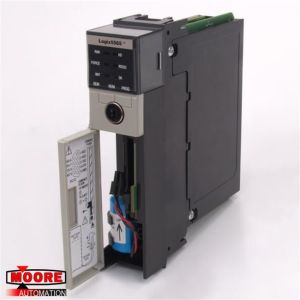

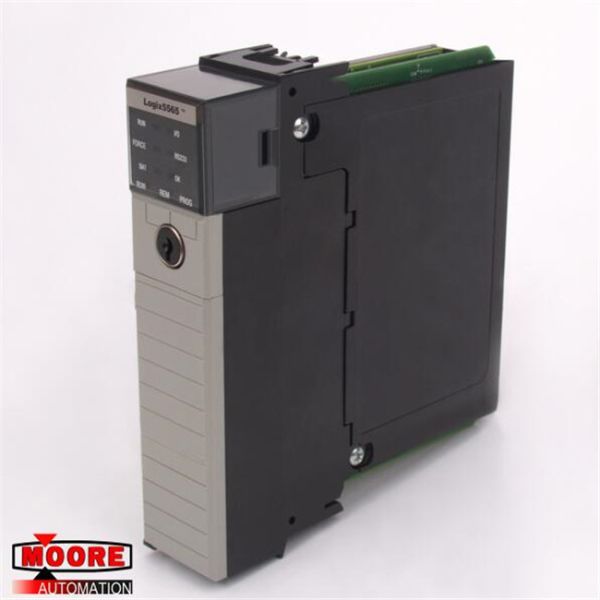

The AB 1756-L65 is a Series B ControlLogix controller. It has a
built-in RS-232 serial port available, as well as a user memory for
data and logic of 32 MB and an I/O memory of 478 kb. You can also
install an optional nonvolatile memory storage with this
controller. However, what can be installed is only the 128 MB
CompactFlash 1756-CF128 memory card. It also has a battery that can
be replaced but only when needed. The battery compatible with this
controller is only the 1756-BA2 lithium battery. The compatible
ControlLogix chassis with this controller are 1756-A4, 1756-A7,
1756-A10, 1756-A13, and 1756-A17.
It has a maximum analog I/O of 4000 and a maximum digital I/O, as
well as a maximum total I/O, of 128,000. It has a current draw of
1200 mA at 5.1V DC and 14 mA at 24V DC. Its power dissipation is
3.5 W and thermal dissipation is at 11.9 BTU/hr. It also has a
continuous isolation voltage of 30V. This controller has also been
type tested for 60 s at 720 V DC.
