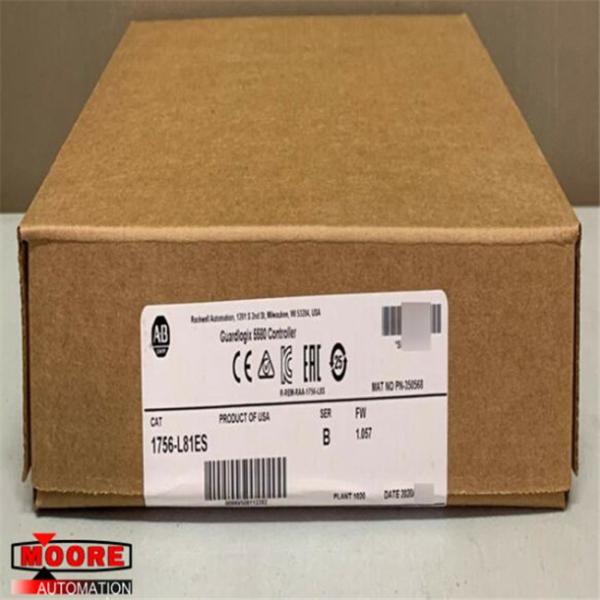

1756-L81ES 1756L81ES Allen Bradley AB 5580 safety controller.
⇒ Click here for good price 1756-L81ES
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-L81ES |
| Alternate Part Number | 1756-L81ES |
| Description | MOTOR SERVO |
| Dimennsions | 14.4x15x4.9cm |
| Weight | 0.2 kg |
Product Details

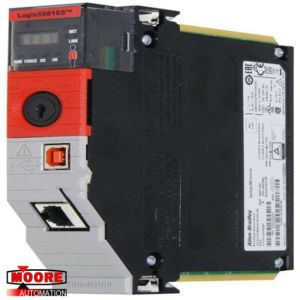

The AB 1756-L81ES controller is an AB GuardLogix 5580 safety
controller. It can perform 31 standard taka and 1 safety task. The
number of programs supported per task is 1000 programs. The
integrated communication ports on the 1756-L81ES controller include
one USB port and one Ethernet port. The USB port complies with the
USB 2.0 standards and it supports a 12 Mbps data rate. It can be
used for programming, configuration, firmware updates, and on-line
edits. The Ethernet port can support 10, 100, and 1000 Mbps data
rates. The optional communication modules available for the
1756-L81ES controller include the ControlNet, DeviceNet, Remote
I/O, DH+, and SynchLink modules. The maximum number of Ethernet/IP
nodes supported is 100 nodes.
The following programming languages are supported on the 1756-L81ES
controller are the ladder diagram, structured text, function block
diagram, and the sequential function chart languages. Controller
redundancy is not supported. The user memory capacity on the module
is 3 MB and safety memory capacity is 1.5 MB. The maximum number of
digital and analog I/Os that are supported are 128,000 and 4000,
respectively. The 1756-L81ES controller can support a total of
128,000 I/O. The module comes with 2 GB of integrated nonvolatile
memory. The current drawn by the module at 1.2 Volts DC is 5
milliamps and at 1.5 Volts DC, the current draw is 1.2 Amps. The
power dissipated as heat during operation is 6.2 Watts. The
approximate module weight is 0.394 kilograms. The 1756-L81ES
controller requires one empty slot in the chassis for installation.
Chassis that are compatible with the 1756-L81ES include the
1756-A4, 1756-A4K, 1756-A7, 1756-A7K, 1756-A10, 1756-A10K,
1756-A13, 1756-A13K,1756-A17, and the 1756-A17 K Series B and
Series C chassis. The operating temperature range is from 0 to 60
degrees Celsius.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
