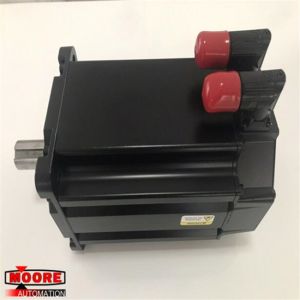

MPL-B4530K-SJ72AA MPLB4530KSJ72AA Allen Bradley AB Servo Motor
⇒ Click here for good price MPL-B4530K-SJ72AA
| Brand/Manufacturer | AB/USA |
| Part Number | MPL-B4530K-SJ72AA |
| Alternate Part Number | MPL-B4530K-SJ72AA |
| Description | MOTOR SERVO |
| Dimennsions | 31.5x23x19.5cm |
| Weight | 3.6 kg |
Product Details
The MPL-B4530K-SJ72AA servo motor belongs to the series of premium
permanent magnet rotary servo motors manufactured by AB. It is
rated at 460 Volts AC, 4000 revolutions per minute, 2600 watts,
0.00040 kg-m2 rotor inertia, 8.25 N-m of stall torque, and 11 Amps
of continuous stall current. Its feedback device is a single-turn
high-resolution encoder for smooth performance and control. The
connector options available on the MPL-B4530K-SJ72AA servo motor
are circular rotatable DIN connectors that allow for the flexible
orientation of cables for power, signal, and feedback devices. The
innovative design, winding technology, and rare-earth magnets
integrated into the MPL-B4530K-SJ72AA servo motor meet the
requirements of motion systems that require more power in a smaller
package.
Quicker acceleration, higher torque performance, and a smaller
motor frame size distinguish the MPL-B4530K-SJ72AA low-inertia
servo motor from conventional servo motors. It has a 130-millimeter
frame and its coils are designed to produce up to 40% higher torque
per unit than traditional servo motors. The shaft key supplied with
this motor securely connects the couplings and pulley mechanisms
that are used in connecting the servo motor to machines. This servo
motor has a 3-inch magnetic stack length. It is compatible with
continuously flexing, environmentally sealed cables as well as with
the AB MPL-SSN-A5B5 shaft seal kits. The motor winding insulation
material used in the MPL-B4530K-SJ72AA servo motor provides better
thermal management and heat transfer to ensure the range of the
servo motor’s operating temperature is not exceeded and to maintain
optimal performance. The MPL-B4530K-SJ72AA servo motor is not
equipped with a DC brake so the users may need to install external
braking mechanisms if required by the applications.
