    Lightweight Concrete 915mm Floor Deck Roll Forming Machine

    Ask Lasest Price
    Brand Name : BEST
    Certification : CE/ISO9001
    Price : usd 18000---25000
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets//month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Lightweight Concrete 915mm Floor Deck Roll Forming Machine

    Lightweight Concrete Forming Machine 915mm Floor Deck Roll Forming Machine


    Place of OriginChina
    Business typemanufacturer
    lead time60-90 days
    Machine colorcustomized
    CertificationCE report
    Conditionnew
    HS Code84552210
    Supply ability15sets/Month
    Packagingcontainer
    After-saler serviceengineer available to service machinery in oversea
    PLCPanasonic
    Operation typeTouch screen
    Hydraulic system pressure12MPa
    Hydraulic motor power11.5kw
    Main motor power2*11kw
    Shaft Material75mm material is 45 # forge steel
    Electric SourceCustomized
    Roller stations26 pairs
    Dimension(L*W*H)Forming part 16m*1.8m*1.6m
    Roll forming line Weight10t
    Dia of roller90mm
    Forming material thickness0.7-1.2mm
    Chain Size1.5 inch
    Material Knife cuttingCr12
    Production speed8-12m/min
    Warranty1 year

    (1) 5T Hydraulic Un-coiler

    • Width of feeding: 1250mm
    • Capability: 5 Ton
    • Inter diameter: 470-520mm
    • Maximal out diameter: 1500mm
    • Coil placement in the coil holder: hydraulic hoist
    • Working speed: 0--20m/min adjustable
    • Main motor power: 5.5KW AC motor
    • Hydraulic power: 4kw

    (2) Main Roll Forming Machine

    • Roller material: ASTM1045 chrome plated surface with hardness, CNC
    • Shaft diameter: ¢85mm material: SAE1045 with quenching and tempering
    • Main frame by 350H beam welding
    • Machine structure: wall board

    (3) Hydraulic cutting system

    • Cutting after forming: Cut the sheet after roll forming to required length
    • Uses two hydraulic cylinders for operation.
    • Material of blade:Cr12, 58-62 HRC hardness
    • Cutting power by hydraulic,5.5KW
    • Working pressure: 12Mpa adjustable
    • Length measuring: Automatic encoder length measuring
    • Tolerance of length: +/- 1.5mm for each piece end product

    (4) Computer Control Cabinet

    • Programmable setting of profile length and quantity
    • Operating system language: English and Chinese
    • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
    • PLC: Panasonic or customerization

    Floor decking roll forming machine main parameters for your reference:
    Floor deck forming machinery is for cutting floor boards CNC automatic machines, plate-type high-strength galvanized steel floor panels, large-span floor shop contained cement. It is PLC control, touch screen operation, easy to use.

    Floor decking rolll forming machine
    This is floor decking roll forming machine main parameter:


    Main roll forming machineSize: about 7500х1650х1500

    Weight: 4. 5 tons

    Voltage: 380V/50HZ 3Phase or as your required
    Roller fixer : middle plate

    Frame : 350mm H beam steel welded

    Drive mode: 1.0 inch single row chain
    Material of rollers: 45# steel, surface hard chromium plating.

    Diameter of shafts: φ85mm material is 45# forge steel

    Number of rollers: 28 rollers station.

    Main power: 15kw

    Shearing system
    Feature : Ensure stability, precision and cutting speedFunction : Automatic cutting controlled by PLC
    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

    Material of blades: Cr12 quenched

    Power supply : hydraulic power

    Components: It contains one set of blade, one hydraulic tank and one cutter machine.

    Hydraulic stationIt is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

    Power:4kw 12 MPA

    Hydraulic oil: 46#

    Electric Control System
    Feature:

    1. Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime.

    2. If you need, we can change it other brand or little computer type for touching screen.

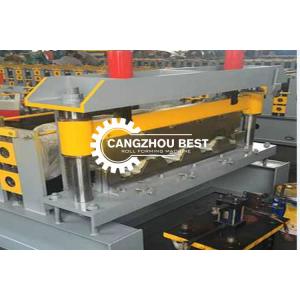

    machine picture
