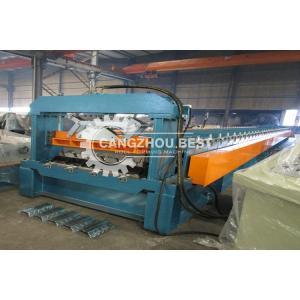

    Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage

    Ask Lasest Price
    Brand Name : BEST
    Certification : CE/ISO9001
    Price : USD14000-28000
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets/month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage

    Composite Floor Deck CNC Roll Forming Machine Closed Type Dovetail Profile Usage


    Main Specifications

    No.ItemSpecification
    1.Material Specification1. Thickness: 0.8-1.2mm
    2. Material Width / Feeding Width: 1219mm
    3. Yield Strength: G300-G550Mpa
    4. Applicable Material: Galvanized Steel, Color Steel, Stainless Steel
    2.Production Specification1. Roller Stations / Forming Steps: 36 roller stations
    2. Roller Material: GCr15 Steel, with 0.05mm thick Chrome plated
    3. Diameter of Shaft: 120mm
    4. Shaft Material: 40Cr with heat treatment and chrome plated
    5. Drive Type: electrically driven via chain and sprocket
    6. Main Power: 11kw * 2
    7. Forming Speed: 12-18m/min
    8. Cutting Type: hydraulically powered mold cutting
    9. Material of Cutting Blade: Cr12Mov, HRC 58-62
    10. Cutting Tolerance: 10m+/-0.5mm

    Description

    This floor decking sheet machine is used to produce steel floor decks with 50mm depth and 460mm pitch distance. Main material can be run are galvanized steel coils with the thickness of 0.8mm to 1.2mm and raw material width of 1250mm.


    Main components of this machine are decoiler, guiding and leveling device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc.


    Fully automatically controlled by PLC and operated by touch screen, users only need to input the production data such as production quantity and cutting length, then the machine will start to work accordingly.


    Most Important Parameters Of Steel Decking Forming Line

    Main ComponentsNo.ItemSpecifications
    5Ton Manual Uncoiler1.Mandrel ExpandingManually adjust the screw to accommodate coil inner diameter
    2.Coil UnwindingUnpowered unwinding
    3.Capacity5000kgs; max 6000kgs
    Steel Deck Rollformer1.Roller Stations26 stations based on deck profile and material
    2.Forming Speed15-20m/min
    3.Main Power11kw * 2
    4.DriveElectrically driven via chain and sprocket
    5.Shaft Material40Cr, with heat treatment and chrome plated
    6.Roller MaterialNo.45 steel with quenching and tempering and chroming
    Hydraulic Cutoff1.TypeStop-cutoff, rest of the line stop running when cutting
    2.Hydraulic Power4kw
    3.Balde MaterialCr12 Mov, HRC58-62

    Machine ComponentSpecification
    5Tons Manual DeocoilerCoil Inner-diameter=510±30mm. Coil Outer-diameter Max. 1300mm;
    Taper wedge expanding system
    Load Capacity: Max. 5 Tons; Coil Width Max. 1250mm;
    Decking floor roll forming machineGear/Sprocket driving; 23 stations roll forming
    Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
    Shafts Diameter=ф75/ф95mm, Precision Machined, fine Polished
    Main motor =15KW, Frequency speed control
    Max Line speed of roll Former: Approx. 8-15m/min
    Hydraulic Cutting DeviceStop to cut, Post cut, slug cutting
    Cutting tool material: Cr12, Heat treatment
    Hydraulic unit, Pump motor =5.5KW
    PLC Control SystemControl the quantity & cutting length automatically
    Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc
    Cut-to-length tolerance≤±2mm
    24V Control voltage
    Controller with forward/backward/emergency stop buttons
    Product RackUn-powered, 3 units

    machine pictures
