    0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : YX-800/1000
    Certification : CE,BV,SGS
    Price : USD8500-25500/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20sets/month
    Delivery Time : 5-60days
    • Product Details
    • Company Profile

    0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine

    0.8mm Aluminium Step Tile Roofing Sheets Roll Forming Machine


    1. Working Flow:

    Decoiler--feeding materil--roll formng--pressing and cutting--output table


    2. Main Features

    [High Efficiency] 5m per minute.
    [Long Life Machine]Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.
    [High Precision]Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
    [Automatic & Easy Operate]Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.
    [Excellent Services]Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.


    3. Technical Parameters

    Technical Parameters (some depend on the final design)
    1Styleglazed roof tile roll forming machine
    2Machine dimension7500*1600*1650mm
    3Total wight5800kgs
    4Forming stepsUp layer :11rows Down layer :13rows
    5Forming speedGlazed design :1.5-3.0m/min Wave design:10-15m/min
    6Hydraulic station power(Kw)4kw
    7Diameter of shaft70mm
    8Hydraulic pressure18-20 MPa
    9Electric condition(Voltage )380V/3Phase/ 50HZ (or based on customer's need ,for example :220V 440V 415V or 2Phase 60HZ )
    10Suitable to processColor steel plate(G330 or G350 ) galvanized steel coil
    11Manual uncoiler max capacity5000kgs
    12Control systemPLC
    13Raw material thickness0.3-0.8mm
    14Effective width800mm
    15Material width1000mm
    16Main motor5.5Kw
    17Material of the cutting bladeCr 12 quenched treatment 58℃-62℃
    18

    Main Shaft Material


    45# steel with finish turning
    19Roller materials45# Forging Steel with Chromium Plate
    20Machine Under Frame400 H beams and side wall 18mm

    4.Components of glazed roof tile roll forming machine

    1Manual uncoiler1 set
    2Sheet guiding equipment1 set
    3Roll forming system1 set
    4Pressing device1 set
    5Post-cutting equipment1 set
    6Hydraulic station1 set
    7Electric controlling system1 set
    8Support table2 pieces

    5. Our service:

    1. Installation and training:

    A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,

    and also trainyour workers/technician face to face.

    B. Without visiting, we will send you user manual and video to teach you to install and operate.

    C. If buyer needs our technician to go to your local factory, please arrange board and lodging and

    other necessary things.

    2. after Service
    A. One year guarantee for whole machine.
    B. 24 hours technical support by email or phone call.
    C. If there is any problem found of the machine, we will repair it for free in one year.

    6. After sales service:

    1) we can produce the special machine,send your drawing to us,we can design for you

    2) if you buy our products,we also can help you to purchase the material, like color roll, the price is lower than you buy by yourself.

    3) we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

    The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

    4) engineers available to service machinery overseas.

    5) if you come to visit our factory, we can book the room for you, car pick up to send.

    Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!

    The real data, the most professinal foreign trade team, your best trustable partner.

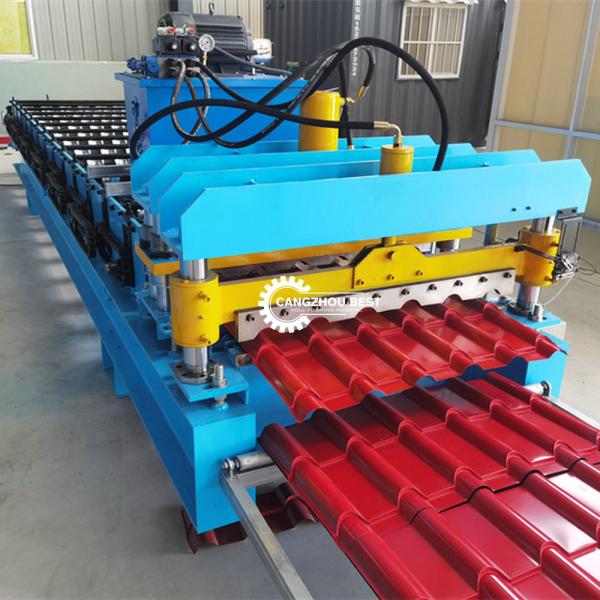

    Machine photos:


    Quality 0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine for sale
