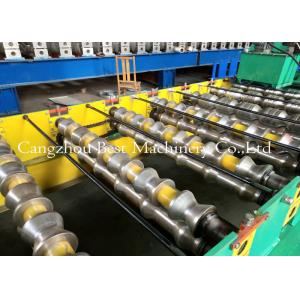

High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor

    Buy cheap High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor from wholesalers

    Buy cheap High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor from wholesalers
    • Buy cheap High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor from wholesalers
    • Buy cheap High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor from wholesalers
    • Buy cheap High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor from wholesalers
    • Buy cheap High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor from wholesalers

    High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : YX-800/1000
    Certification : CE,BV,SGS
    Price : USD6500-USD15500/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20sets/month
    Delivery Time : 5-60days
    • Product Details
    • Company Profile

    High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor

    YX-800/1000 Glazed Metal Roof Tile Building Material Forming Machinery Machine

    Machine component:

    ItemNameQty
    15T Manual Decoiler1
    2Feeding platform with hand cutting system1
    3Main forming system1
    4Hydraulic cutting system1
    5Hydraulic pump station1
    6Electrical motor1
    7PLC control system1
    8Touch screen operation1
    9Finished products receive table1
    10Safety shield(optional)1
    11Hydraulic decoiler(optional)1
    12Automatic stacker(optional)1

    Working flow:

    Decoiler---Feeding&Guiding---Roll Forming---Hydraulic Pressing&Cutting---Receiving Table


    Machine production:

    1. Un-coiler: 5 tons passive
    2. Insider diameter of the un-coiler: 450-550mm

    1. Pressing and cutting way: Hydraulic cut.
    2. Hydraulic power: 3kw hydraulic system.
    3. Blade Material: CR12Mov with heat treatment HRC58-62.


    1. Material Thickness: 0.3-0.8mm PPGI and GI

    2. Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

    3. Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°


    1.Length & quantity controlled by PLC
    Length inaccuracy can be amended easily.
    2.Control panel: Button-type switch and touch screen
    3.The language in the touch screen: English and Chinese
    4.Unit of length: millimeter (switched on the control panel)

    1.Motor power: 3 kw
    2.Oil type: 46# hydraulic oil
    3.Pump brand: China brand

    1.It adopts welded steel and supported roller to transmit the products.

    Technology parameters


    Name of Roll Forming Machine

    Metal Roof Tile Making Machinery

    Profile Drawing or Sample Picture

    IMG_5712

    1

    Suitable raw material

    PPGI/PPGL/GI/GL Steel Coils

    2

    Thickness of coil sheet

    0.3-0.8mm

    3

    Feeding Coil width

    1000mm/1200mm

    4

    Effective width

    800mm/1000mm

    5

    Under frame

    350H-beam

    6

    Diameter of Soild shaft

    70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway

    7

    Roller

    High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

    hard chrome coated 0.05-0.07mm

    8

    Thickness of middle plate

    Guide pillar memorial archway

    9

    Forming stations

    16

    10

    Drive type

    By chain(1.0 inch) link bearing model 6210

    11

    Power of main motor

    4kw with Cycloidal reducer, Lichao, Shanghai

    12

    Power of pump station

    4kw, Lichao, Shanghai

    13

    Forming speed

    About 15-20m/min

    14

    Hydraulic cutting

    Controlled by PLC

    15

    PLC

    DELTA, TAIWAN / Mitsubishi, Japan

    16

    Material of cutting blade

    Cr12Mov, quenching 58-62℃

    17

    Frequency converter

    It has the advantage of slowing down before cutting, to ensure the

    length accuracy(±1mm, far better than industrial

    standard ±3mm).

    18

    Switch

    CHNT

    19

    Transducer

    SAJ
