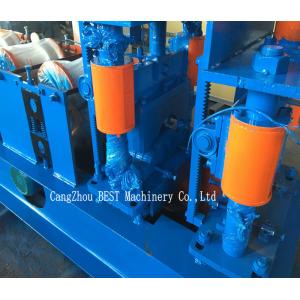

    Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : CHBEST-250
    Certification : CE/ISO
    Supply Ability : 15sets/month
    Delivery Time : 35days
    • Product Details
    • Company Profile

    Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting

    Roof Ridge Cap Cold Roll Forming Machine PLC Control with Hydraulic Cutting


    Working Flow

    Decoiler----feeding----roll forming----pressing----cut to length----output table


    Decoiler

    TypeHydraulic Or Manual
    Width1250mm

    Inner Diameter

    450-550mm

    Out Diameter

    1500mm
    Capacity5000kg

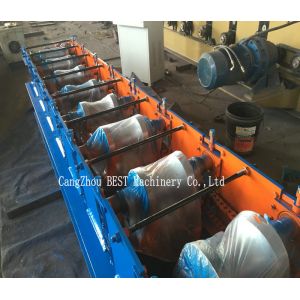

    Roll Forming Machine

    Material Thickness: 0.3-0.8mm PPGI and GI

    NO. of roller Stations: 14 groups
    Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

    Diameter of shaft: 70mm

    Shaft material: 45# steel

    Frame panel thickness: 14mm

    Bottom frame: 35# H-section steel
    Motor Power: 3kw

    Driven type: 0.6"Chain

    Speed: about 6m/min


    Pressing Device

    Stop to press, Post to press

    Press tool material: Cr12 steel heat-treated

    Motor for Hydraulic Stand:3 kw


    Cutting Device

    Material for Cut-Off Modular:Cr12 steel
    Hardness for Heat Treatment:HRC55 – 60℃
    Motor for Hydraulic Stand:3 kw


    Control System

    Type

    PLC Frequency Control System with touch screen

    PLC Brand

    Delta

    Encoder Brand

    Omron

    Length Error

    ±2mm

    Voltage

    380v/50HZ, 3Phase


    Hydraulic Pump

    Power3kw
    Oil Type

    46# hydraulic oil

    Pump brand

    China Brand

    Output Table

    No power type
    Length: 2m



    Packing Detall

    1.40 GP container ; main machine naked and fastened with iron wire in the container.
    2.rollers were painted with oil and packed with plastic film.

    3.electrics devices be packed with wooden box.for Standard export packing.

    4. All Components Fixed by steel wire with Container.



    Pre-Sales-Service

    If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

    Without visiting, we will send you user manual and video to teach you to install and operate.

    After-Sales-Service

    Training how to instal the machine, training how to use the machine.

    Engineers available to service machinery overseas.

    If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.


    Company Profile

    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.


    Other Product

    roof sheet machine, roof tile machine, double layer machine, highway guardrail machine, ceiling drywall machine, roller shutter door machine, door frame machine, water tube machine, water gutter machine, decking sheet machine, automatic c z purlin machine, solar rack machine.
