    Electric Cutting 17 Stations 17.7kw K Span Machine For Roof

    Ask Lasest Price
    Price : USD$80000---100000
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets/month
    Delivery Time : 30 work days
    Brand Name : BEST
    Certification : CE
    • Product Details
    • Company Profile

    Electric Cutting 17 Stations 17.7kw K Span Machine For Roof


    Electric Cutting 17 Stations 17.7KW Large Span Roof Panel Roll Forming Machine 45# Steel


    Main Specifications Of Large Span Roof Panel Roll Forming Machine

    Thickness of sheet: 0.8-1.5mm

    • Mounting dimension of Large Span Roll Forming Machine: 8900mmx2250mmx2300mm
    • Total weight: about 13 Ton
    • Forming Station: 17 stations
    • Control system: electric control
    • Main motor power: 17.7KW
    • Forming Power is 7.5KW
    • Curving motor power: 4KW
    • Electric cutting motor power: 4kw
    • Conical Power is 2.2KW
    • Material of rollers: 45# steel, quenched HRC58-62
    • Material of shaft: 45# steel, adjusted
    • Material of cutting blade: Cr12 steel
    • Quenching hardness: HRC58-60

    Technical Details

    Machine Specifications
    WeightAbout 13000kgs
    SizeAbout 9.5m x 2.3m x2.5m (length x width x height)
    ColorMain color: white
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness0.6-1.6mm
    Coil width914mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations12-14
    Diameter of forming rollers shafts75mm
    Working SpeedStraight sheet: 15m/min
    Arch sheet: 13m/min
    Sewing: 10m/min
    Max span38-42m
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 15kw
    Hydraulic unit motor power: 4kw
    Bending power: 4kw
    Electric voltageAccording to customer’s requirement
    Main Components
    Decoiler (manual and automatic for options)1 set
    Guiding device1 set
    Roll Forming system1 set
    Curving/Bending system1 set
    Hydraulic Cutting system1 set
    PLC control box1 set
    Hydraulic unit1 set
    Products table1 set
    Sewing equipment1 set

    K-Span Roll Forming Machine

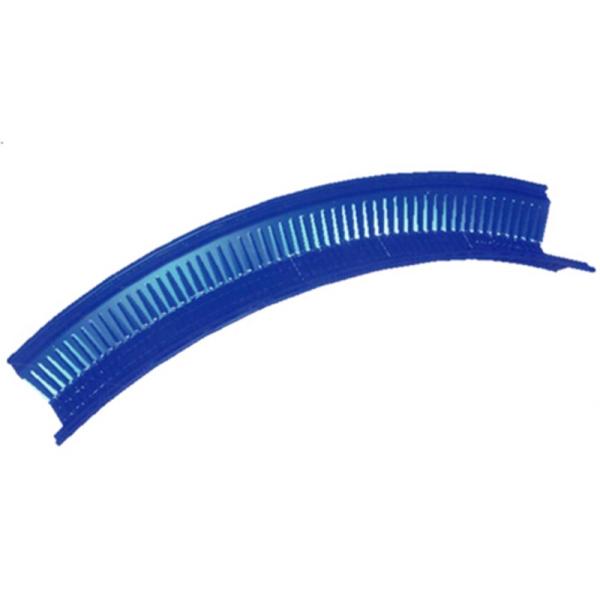

    End product view

    K-Span Roll Forming Machine
    End product view

    K-Span Roll Forming Machine
