    0.25mm Single Layer Roofing Sheet Roll Forming Machine Steel Profile Corrugated

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : XY30-300-900
    Certification : CE/BV/SGS
    Supply Ability : 20 sets/month
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    0.25mm Single Layer Roofing Sheet Roll Forming Machine Steel Profile Corrugated

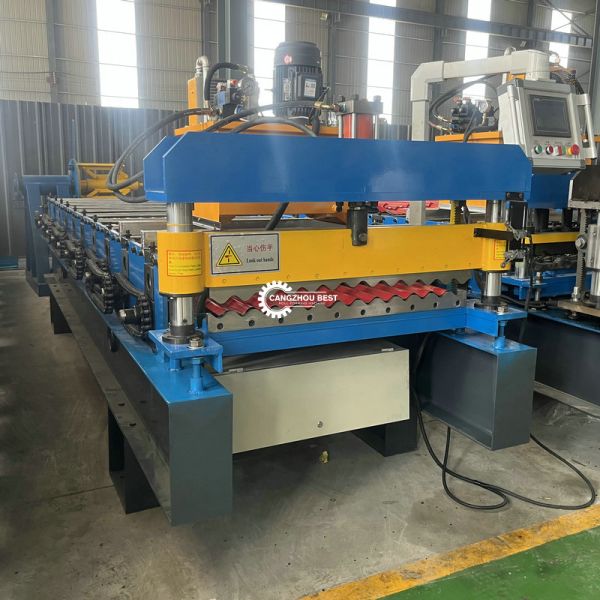

    Single Layer Steel Profile Corrugated Roof Sheet Roll Forming Machine


    1.Different roof/wall panel cold roll former can produce different shapes of steel roof wall sheets


    According to the client's profile drawings and requirements.

    We can also supply the customized machines


    2. Applications of Roof/Wall Panel Roll forming Machine:

    The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition
    centers etc


    The advantage of IBR sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.


    Machine components

    No.NameQty
    1.De-coiler1 Set
    2.Roll Forming Machine1 Set
    3.Hydraulic Cutting Device1 Set
    4.PLC Control Box1 Set
    5.Hydraulic Pump1 Set
    6.Output table1 Set

    Technical Parameters:


    Suitable MaterialMaterialGI, PPGI, PPGL
    Width1000mm
    Thickness0.2-0.8mm
    Yield strengthQ235
    Material of rollersHigh grade 45# forged steel, surface hard chromium plating
    Rows of rollers11 stations
    Material of shaftsHigh grade 45# forged steel
    Diameter of shafts70mm
    Material of cutting bladeCr12 Heat Treatment
    Cutting ModeHydraulic Guide Column
    Speed20-25m/min
    Side plate thickness16 mm
    Chain size1 inch
    Total power4 kw
    Voltage380V 50HZ 3Phase
    Appearance size (About)5800mm*1300mm*1500mm
    Weight(About)4.5 tons
    Length measurementEncoder
    Control modePLC
    Operating modeButton +Touch screen

    Production Process:


    Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving


    Packing Method

    Main machine is packaged with plastic film


    Transportation

    All machines need one 40 feet container to hold


    Payment Term

    30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.


    Delivery Time

    Within 35 days after receiving deposit.


    Warranty

    Two years, and we will provide technical support for wholelife of the equipment.

    If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
