Product Description of Film Coating Machine
The machine is advanced on the basis of BG film coating machine.
Its pan can be changed to fit the film and sugar coating of small
pharmacy, food, biology, and research products. A mainframe can
produce in different batch.
Product Parameter of Film Coating Machine
| Items | Parameters |
| Production quantity | 20/10/5Kg every time |
| Speed range of film coating roller | 3-28 r/min |
| Diameter of material inlet | 280mm |
| Diameter of film coating roller | 520/580/680mm |
| Diameter of roller mesh | 3mm |
| Motor power of mainframe | 0.75KW (The mainframe is totally closed) |
| Air source (supplied by the user) | 0.8 m3/min Pressure: ≥0.4MPa. |
| PLC | It can make the frequency conversion continuously variable and set,
adjust, display and memorize the technical parameters, operation
speed, air inlet speed, spray force and flow during the operation
of the complete machine. |
| Hot air cabinet | Motor power of hot air filter | 0.75KW (explosion-proof) |
| Filter precision | 0.5μm |
| Filter cleanliness | 100,000 class |
| Air inlet speed | 1200m³/h (with a class-3 filter) |
| Hot air temperature | 40~80℃ (adjustable) |
| Dust removal cabinet | Motor power dust removal fan | 2.2KW (explosion-proof) |
| Air outlet speed | 3571 m3/h |
| Surface material | Matt stainless steel |
| Dimensions | 730*730*1660 (L*W*H) |
| Weight | 300Kg |
| Spray gun | Imported spray gun with uniform atomization, adjustable spray
shape, position and angle |
| Motor power of peristaltic pump | 0.25KW |
| Peristaltic pump speed | 200-700 r/min |
Features of Film Coating Machine
The pan changeable film coating machine acquires not only the
function of film coating machine with hole, but also the most
outstanding feature that the machine pan can be changeable to
fulfill the requirements of variable production batch. According
to practical needs, the pan and air path can be changed quickly to
coat film in different batch.
Performance Characteristics of Film Coating Machine
1. All operations of the high-efficiency coating machine are
completed on the touch screen of the computer control panel, and
the operation panel is a fully sealed light touch man-machine
interface, with reliable and stable performance;
2. Under the action of the streamlined deflector agitator, the
turning is smooth and the exchange is frequent, which eliminates
the phenomenon of chips falling from a high place and colliding,
solves the debris and edge knocking, and improves the yield.
The surface of the deflector is narrow, which eliminates the
adhesion of auxiliary materials on its surface, saves auxiliary
materials and improves the quality of medicines.

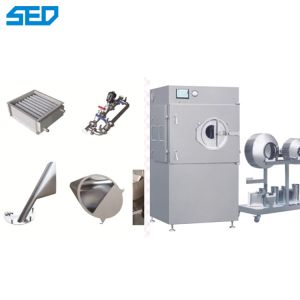

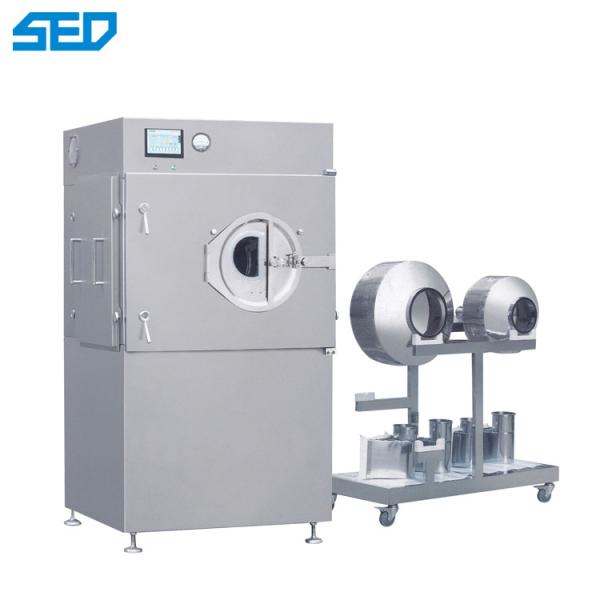

Product Show of Film Coating Machine
Application of Film Coating Machine
High-efficiency coating machine equipment is suitable for
water-based film, organic film surface coating, water-soluble film
coating, slow and controlled release coating, drop pill coating,
sugar coating and chocolate, A special equipment for candy coating,
which is widely used in large-scale and mass production in the
pharmaceutical and food industries.
