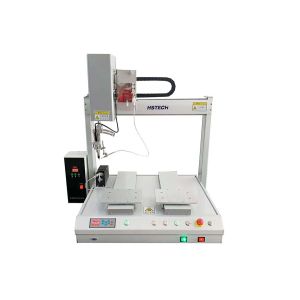

Automatic Desktop Soldering Robot with Smog Cleaner for Air
Purification
Smg Cleaner Specification
| Model | H100A | H200A |
| Voltage | 220V/110V,50/60Hz | 220V/110V,50/60Hz |
| Power | 100W | 200W |
| Pipe size | Diameter 75mm,length 1400mm | Diameter 75mm,length 1400mm |
| Noise | <42dB | <50dB |
| Air volume | 250m³/h | 370m³/h |
| Weight | 15kg | 17kg |
| Machine body size | 420*245*450mm | 420*245*450mm |
Machine Features
1, 4Axis working, X/Y/Z and R rotation moving, achieve many angle
soldering purpose.
2, The soldering iron without nitrogen, very safety and environment
protective,
3, The soldering head can be multi-directionally adjusted, which
can protect the PCB and components from damage.
4, Use the Iron head as the base point to align the key position of
the product, press the enter key, the program will automatically
generate this point in the system,then setting the data about the
point and so on.
5. Using high precision stepper motor and timing belt driven system, and advanced motion
control algorithms to effectively improve motion positioning
accuracy and repeatability.
6, The machine with automatic cleaning function, which can make the
solder processing more stable, and extend the lifespan of the
solderin iron.
7, With the handheld LCD teaching pendant, the programming is
simple and easy to learn.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage | It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points) |
| File storage space | Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points) |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension | 520*585*800mm |
About Us:
Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012
by prefessional and experienced engineer who wroked many years in
EMS company,we specilized in PCB handling equipments at first, then
we develop the PCB depaneling machine and SMT cleaning machine.
HSTECH not only have professional technical team for R&D,but
also have a outgoing and experienced marketing team for research
and develop, grasps products developing directions, updates the
products and technics to meet the continue changing demands. In the
past years,we have been always keep innovating and exploing to make
cost-efficient products to help our customers saving cost and
labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the
concept of "Quality-Oriented and Customer-orented", and combined
the industry feature, smart technology persuit for the smart
factory.As for the after-sale service, we insist on
"responsibility", we will take reaction at the first when we got
quality feedbacks,and service our customers all the time.
