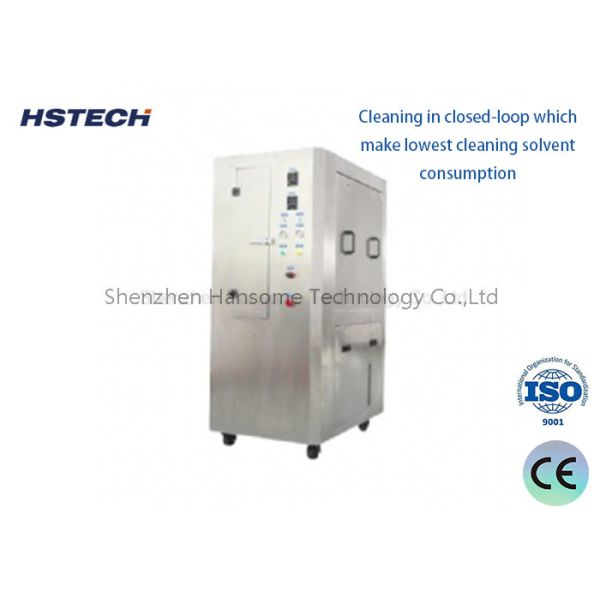

Automatic SMT Stencil Cleaner with Drying Function, SUS304 Steel
Body
Machine introduction
This machine (Model:HS-600) we call it pneumatic SMT stencil
cleaning machine, it's a automatic stencil cleaning equipment, with
the cleaning and drying function combined. It's used in the SMT
assembly process, designed for automatic cleaning solder paste
steel mesh, red glue steel mesh, cooper mesh, resin screen,etc. It
use the alcohol as the cleaning solvent, equiped with the 3 level
filter system to achieve the solvent repeatly using, save the
solvent consumption. This machine use the spray cleaning method for
cleaning,powered by the air compressor, use the pump siphon the
solvent and drive the spraying cleaning bars for double sides
cleaning, the cleaning performance is very good.
Features
1. SUS 304 structure, Acid and Alkali corrosion resistance, 15
years lifespan.
2. All liquid pipes are SUS304, no plastic pipes at all.
3. Both solvent and cleaning liquid can be used in this machine.
4. Driven by compressed air, no use electric power,100% safe by
using solvent.
5. One button easy operation, clean and dry complete automatically.
6. 360°rotate spray rods on both sides , ensure good cleaning
quality and
stable stencil tension.
7. Liquid recycle use, low consumption.
8. Inner-lock safety door and safety valve, once open, machine will
be stopped
immediately.
9. 3-level precise liquid filtering system. Liquid used repeatedly.
10. Super well-known Pneumatic parts from all over the word
manufactures.
11. Modular design, easy maintenance.
Specification
| Model | HS-600 |
| Power supply | Compressor air |
| Application | stencil,metal mesh, steel mesh,cooper screen,gule screen |
| Stencil size | standard 29inch and below,740*740*40mm |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method | Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min Stencil and Copper Screen |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 305kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
