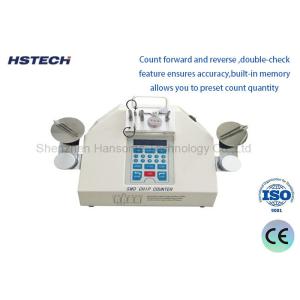

Full Automatic SMD Component Reel Counter with Label Printer &
Button Control Leak Detection
Features
1, Full automactic counting SMD components ,high accuracy count.
2, Can connect the barcode Scanner and label printer,
3, Easy operate,designed to prevent tape dropping,minimizing risk
of damage to tapes.
4, Count forward and reverse ,double-check feature ensures
accuracy,built-in memory allows you to preset count quantity.
5, The counter use drafting LCD screen. Small size, light weight,
easy to carry
6, Use patent reflector,humanized operation platform.
7, Install bar code , convenience electronic component management.
8, Optical fiber sensor detect leak ,motor will stop working when
detected leak.
Specification
| Model | HS-COU2000EX |
| Voltage | AC220, 50/60Hz |
| Power Supply | 25W |
| Motor Brand | Panosonic |
| Counting Range | “-59999~59999” |
| Pitch Size | 1/2,1,2,3,4,5,6,7,8,9,10,11,12,13,14mm |
| Width of tape | 8,12,16,24,32,44,56,72,88 m |
| Plastic reel size | 7-13 inch |
| Universal Products | Suitable for all tape components |
| Product Size | 450*240*280mm |
| Package size | 610*305*350mm |
| Gross Weight | 9.5kg |
SMT production line equipment:
1.Loader: PCB is placed in the Rack and automatically fed to the
suction board machine.
2.Sucking machine: automatically suck PCB placed on the track,
transfer to the printing machine.
3. SMD machine: the use of equipment edited by the program will be
components mounted on the designated parts position, can be mounted
SOP 28pin or more (including high-speed machine can be mounted
components) rolls, discs or tubes of packaging components.
Characterised by high mounting accuracy, diversification, but the
mounting speed is inferior to high-speed machines.
4. Reflow soldering: SMT solder paste or red glue using the
temperature to set the appropriate temperature profile so that the
solder paste and parts to complete the welding action.
5.Unloader: Through the transmission track, the board is collected
in the magzine.
