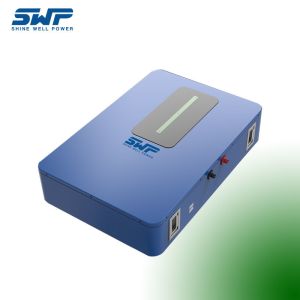

Product Description:
The Home Battery Energy Storage System is the perfect solution for
anyone wanting to power their home with renewable energy. Our
wall-mounted battery storage system offers a capacity of 5-20kWh,
allowing you to store and use energy from solar, wind or other
renewable sources whenever you need it. With a cycle life of
5000-8000, our battery will provide reliable, long-term energy
storage to meet your needs. Additionally, the battery features
safety protections such as overcharge, overdischarge, overcurrent,
short circuit and temperature protection, along with a 51.2V
voltage output. Our storage system also comes with a remote
monitoring system, allowing you to stay in control of your energy
usage. Our Home Battery Energy Storage System is the ideal storage
option for any home wanting to make use of renewable energy.
| SWP51100-PW Solar Battery Energy Storage System |
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Parallel Connection | Max. 16 units |
| BMS | 16S100A |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short,
Balance |
| Communication | RS232 RS485 and CAN |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge | Less than 3% per month |
| Charge Efficiency | 100% @ 0.2C |
| Discharge Efficiency | 98%-100% @ 1C |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 50A |
| Fast Current | 100A |
| Discharge Specifications | Standard Current | 100A |
| Max.Con.Discharge | 200A |
| Cut-Of Voltage | 40±0.2V |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 50 |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material | Black / Siliver / White Metal Cases |
| Cells Type | EVE 3.2V100Ah |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) |
| Storage Temp | -20℃-45℃ (-4℉-113℉) |
| Battery Type | LiFePO4 |
| Cycle | The cycle life shall not be less than 3000 times when DOD is 100%.
The cycle life shall not be less than 6000 times at 80% DOD.(Charge
according to standard charge, put it aside After 0.5～1h; discharge
according to the standard, put it aside for 0.5～1h, count as 1
cycle). |
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3
(Cell / Pack) , ROHS (Cell) |
| After-sales service period | 5 Years |
| Estimate useful life | ≥10 Years |
| With Display | No |
Features:
- Product Name: Home Battery Energy Storage System
- Application: Residential, Commercial
- Cycle Life: 5000-8000
- Installation Method: Wall-mounted, Floor-mounted
- Voltage: 51.2V
- Warranty: 5years
Technical Parameters:
| Parameter | Value |
|---|
| Remote Monitoring System | Yes |
| Operating Temperature | -20℃~50℃ |
| Compatible Inverter | Yes |
| Warranty | 5years |
| Installation Method | Wall-mounted, Floor-mounted |
| Cycle Life | 5000-8000 |
| Capacity | 5-20kWh |
| Battery Management System | Yes |
| Power | 3-10kW |
| Application | Residential, Commercial |
Applications:
The SWP-48100RM Home Battery Energy Storage System, made by SWP, is the perfect choice for residential and commercial use. This HV
battery pack uses a salor battery storage system to store up to
5-20kWh of energy, and comes with an advanced battery management
system for continuous monitoring. It also features a remote
monitoring system and a communication interface with RS232, RS485,
and CAN. With its high-quality house energy storage system, the
SWP-48100RM provides the perfect energy storage solution for your
home or business.
Customization:
SWP Customized Home Battery Energy Storage System
We offer a variety of customized home battery energy storage
solutions that fit your needs. Our SWP-48100RM model is a wall
mounted battery storage system that is perfect for residential
applications. It is equipped with a remote monitoring system and a
capacity range of 5-20kWh. It also has communication interfaces for
RS232, RS485, and CAN, a cycle life of 5000-8000, and safety
protection features such as overcharge, overdischarge, overcurrent,
short circuit, and temperature protection. Our Salor battery
storage systems are designed to be reliable and efficient,
providing you with a reliable and energy efficient home battery
storage system.
Support and Services:
Home Battery Energy Storage System Technical Support and Services
We provide full technical support and services for the Home Battery
Energy Storage System, from installation to maintenance. Our
services include:
- Installation of the Home Battery Energy Storage System
- Inspection and maintenance of the system
- Troubleshooting and repair of any technical issues
- Comprehensive customer support
We offer a dedicated team of service technicians and engineers to
ensure that your Home Battery Energy Storage System is running at
its best. Our team is available to answer any questions or concerns
you may have.
For further information about our technical support and services,
please contact us at info@example.com.
Packing and Shipping:
Packaging and Shipping
The Home Battery Energy Storage System is packaged securely and
shipped in a cardboard box. The box is reinforced with plastic to
ensure its contents remain safe during transport.
The Home Battery Energy Storage System is shipped with a standard
ground courier service. We recommend customers select a premium
shipping option if they need their order delivered faster.
FAQ:
- Q: What is the brand and model number of the Home Battery Energy
Storage System? A: The Home Battery Energy Storage System is a SWP SWP-48100RM model.
- Q: Where is the Home Battery Energy Storage System made? A: The Home Battery Energy Storage System is made in China.
- Q: What are the main characteristics of the Home Battery Energy
Storage System? A: The Home Battery Energy Storage System has a long service life,
high energy storage density, and is environmentally friendly.
- Q: What is the capacity of the Home Battery Energy Storage System? A: The Home Battery Energy Storage System has a capacity of 48100RM.
- Q: What are the advantages of the Home Battery Energy Storage System?
A: The Home Battery Energy Storage System is cost-effective, can
store a large amount of electrical energy, and is easy to install
and maintain.
