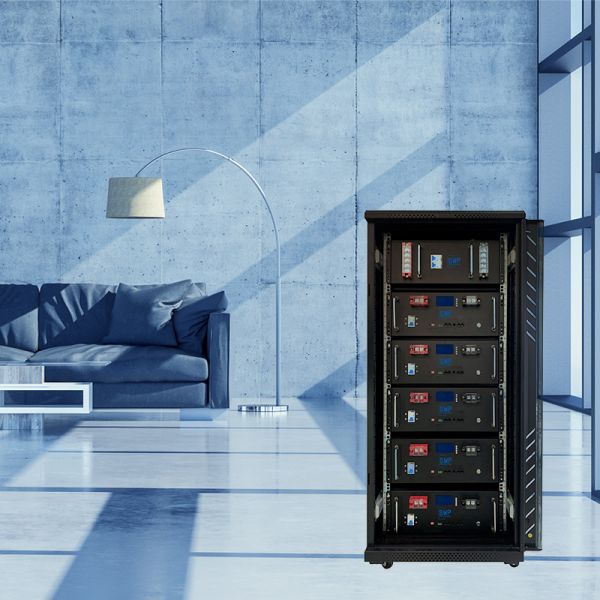

SWP48100 House Energy Storage System Electrical Advanced BESS
Battery Energy Storage System for Optimal Performance
Product Description:
The Home Battery Energy Storage System is designed to provide
reliable and long-term residential and commercial energy storage
solutions. It is equipped with an integrated safety protection
system, including overcharge, overdischarge, overcurrent, short
circuit and temperature protection, to ensure safe and secure
operation. The system is capable of operating in a wide temperature
range from -20°C to 50°C, and it offers power options of 3-10 kW.
The system is also backed by a 5-year warranty, giving you peace of
mind in your investment. With the Home Battery Energy Storage
System, you can maximize the benefits of your household solar
energy storage system, and enjoy the convenience of a reliable and
powerful household energy storage battery.
| SWP48100-RM House Energy Storage System |
| Electrical specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Parallel Connection | Max. 16 units |
| BMS | 16S100A |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short,
Balance |
| Communication | RS232 RS485 and CAN |
| Cycle Life | 3000 times cycles @ 100% DOD and 6000 times @ 80% DOD |
| Self Discharge | Less than 3% per month |
| Charge Efficiency | 100% @ 0.2C |
| Discharge Efficiency | 98%-100% @ 1C |
| Charge Specifications | Charge Voltage | 57.6V±0.8V |
| Standard Current | 50A |
| Fast Current | 100A |
| Discharge Specifications | Standard Current | 100A |
| Max.Con.Discharge | 200A |
| Cut-Of Voltage | 40±0.2V |
| Mechanical Specifications | Dimension (mm) | Customized |
| Approx Weight (KG) | 48 |
| Terminal Type | KT8-10-2P Fence terminal 0r Plug-in terminal |
| Cases Color/Material | Black Metal Cases |
| Cells Type | EVE 3.2V100Ah |
| Temperature Specifications | Charge Temp | 0℃-55℃ (32℉-131℉) |
| Discharge Temp | -20℃-60℃ (-4℉-140℉) |
| Storage Temp | -20℃-45℃ (-4℉-113℉) |
| Battery Type | LiFePO4 |
| Cycle | The cycle life shall not be less than 2000 times when DOD is 100%.
The cycle life shall not be less than 4000 times at 80% DOD.(Charge
according to standard charge, put it aside After 0.5～1h; discharge according to the standard, put it aside for 0.5～1h, count as 1 cycle). |
| Certificate | UL1642(Cell), IEC62133(Cell), IEC62619 (Cell), CE(Pack), UN38.3
(Cell / Pack) , ROHS (Cell) |
| After-sales service period | 5 Years |
| Estimate useful life | ≥10 Years |
| With Display | No |
Features:
- Product Name: Home Battery Energy Storage System
- Operating Temperature: -20℃~50℃
- Installation Method: Wall-mounted, Floor-mounted
- Application: Residential, Commercial
- Voltage: 51.2V
- Cycle Life: 5000-8000
- Battery Energy Storage Station
- Home Solar Energy Storage System
Technical Parameters:
| Parameters | Details |
|---|
| Compatible Inverter | Yes |
| Application | Residential, Commercial |
| Cycle Life | 5000-8000 |
| Remote Monitoring System | Yes |
| Warranty | 5years |
| Power | 3-10kW |
| Installation Method | Wall-mounted, Floor-mounted |
| Voltage | 51.2V |
| Communication Interface | RS232, RS485, CAN |
| Battery Management System | Yes |
Applications:
Experience the Benefits of SWP Home Energy Battery Storage System
The SWP-48100RM Home Energy Battery Storage System is a
revolutionary new energy storage battery that provides reliable,
cost-effective, and long-lasting energy storage for your home. With
a 5 year warranty, this energy storage battery is designed to
provide reliable and cost-effective energy storage for your home.
It's wall-mounted or floor-mounted installation options make it
easy to install and it's advanced safety protection features,
including overcharge, overdischarge, overcurrent, short circuit,
and temperature protection, make it safe for use in your home.
Additionally, its 5000-8000 cycle life and compatibility with most
inverters make it a great choice for energy storage. With the SWP
Home Energy Battery Storage System, you can experience the benefits
of reliable, cost-effective, and long-lasting energy storage for
your home.
Customization:
SWP Home Battery Energy Storage System (BESS)
- Brand Name: SWP
- Model Number: SWP-48100RM
- Place of Origin: China
- Compatible Inverter: Yes
- Remote Monitoring System: Yes
- Safety Protection: Overcharge, Overdischarge, Overcurrent, Short Circuit, Temperature
Protection
- Voltage: 51.2V
- Power: 3-10kW
SWP Home Battery Energy Storage System (BESS) is the perfect choice
for home battery storage. It is equipped with a compatible inverter
and a remote monitoring system, making it easy to keep track of
your energy usage. It also features various safety protection
measures such as overcharge, overdischarge, overcurrent, short
circuit, and temperature protection, ensuring your energy supply is
always safe and reliable. With its 51.2V voltage and 3-10kW power
capacity, the SWP Home Battery Energy Storage System (BESS) is a
great choice for your energy storage needs.
Support and Services:
Home Battery Energy Storage System Technical Support and Service
Our team is here to provide you with technical support and service
for your Home Battery Energy Storage System. Our engineers are
experts in system design, installation, operation, and maintenance.
We offer comprehensive technical support services to help you
optimize your energy storage system performance. Our services
include:
- Design and installation assistance
- System monitoring and maintenance
- Troubleshooting and repair services
- Preventative maintenance services
- Software and firmware upgrades
We are available 24/7 to answer your questions and provide
technical support. Contact us today for more information or to get
started.
Packing and Shipping:
Packaging and Shipping for Home Battery Energy Storage System
The Home Battery Energy Storage System will be securely packaged in
accordance with international shipping standards. The system will
be packaged in a box with dimensions of 48.5" x 20" x 24.5" and a
weight of 145 lbs.
The box will be sealed properly and clearly labeled with the
product name, shipping address, and a brief description of the
contents. The box will also include a return address in case of any
issues during the shipping process.
The product will be shipped via a reputable carrier with trackable
shipping. The shipping time will vary depending on the destination,
but the estimated delivery time is 2-4 business days.
FAQ:
- Q: What is Home Battery Energy Storage System?
- A: Home Battery Energy Storage System is a storage system designed
to store energy from solar panels, wind turbines or the grid. It
helps to reduce electricity bills, providing reliable and clean
energy.
- Q: What is the brand name and model number of this product?
- A: The brand name of this product is SWP and the model number is
SWP-48100RM.
- Q: Where is this product made?
- A: This product is made in China.
- Q: What are the benefits of using Home Battery Energy Storage
System?
- A: Home Battery Energy Storage System can help you to save money on
electricity bills, reduce emissions and provide clean and reliable
energy.
- Q: What is the capacity of this product?
- A: The capacity of this product is 48100 RM.
