    High Speed Full Automatic X Y Axis Wire Welding Machine Security Fence Panel Wire Mesh Welder

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-TSP-100/150K
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

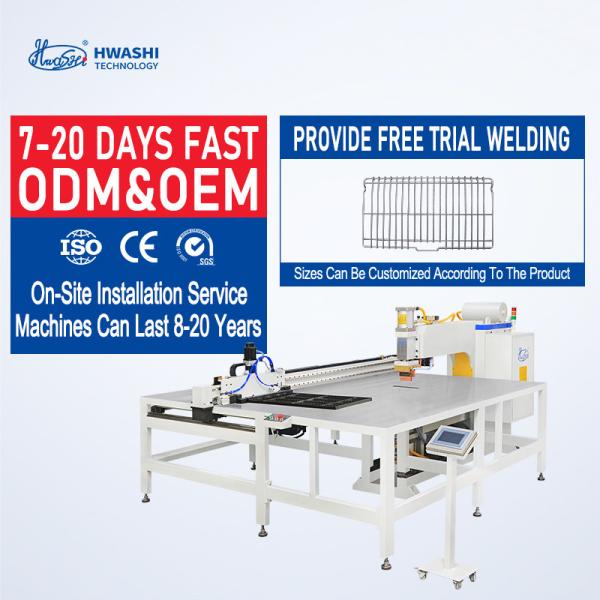

    High Speed Full Automatic X Y Axis Wire Welding Machine Security Fence Panel Wire Mesh Welder

    XY axis wire welding machine High Speed Full Automatic Security Fence Panel Wire Mesh Welder Welding Machine

    wire welding machine adopts a single-head long arm type welding structure, equipped withwork piece molds that move along the X and Y axis automatically. Input coordinatedata ofwelding position, welding current and other data to realize autormatic welding.Just need to load the material manually and take out the work piece. lt is suitable for the welding ofthe mesh with in the range of 1000mm X 1000mm.


    Intelligent welding control system

    Automatic welding by inputting coordinate data of welding position, welding current and other data.

    Special product molds welding platform

    Processing and production according to the size of each mesh product

    X.Y axis moving device

    Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required

    Single head long arm type welding

    The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head


    Specification

    Model

    WL-TSP-100/150K

    Input Power (V/φ)

    380/3

    Rated Power (KVA)

    100/150

    Applicable Material

    Stainless Steel, Carbon steel, Aluminum, Metal

    Electrode Force (KG)

    250-400

    Wleding Thickness (MM)

    1-5mm

    Warranty

    1 years

    Mesh Welding Range

    1000mm X 1000mm


    XY axis automatic moving wire welding machine

    The wire welding machine features a highly efficient servo motor-driven XY axis mold frame, utilizing a synchronous belt drive system. Controlled by the advanced control system, the machine enables precise control over the walking step length and speed. Once the manual material is securely fixed onto the mold frame, the switch is activated, and the industrial control computer takes charge. The product then undergoes automated welding as it alternately moves along the X and Y axes of the mold frame, seamlessly completing the welding process for each joint. Upon completion, the machine automatically returns to the origin without requiring additional manual intervention. This eliminates the need for additional personnel during the welding operation. Meanwhile, the operator can utilize the available time to set up the next material, optimizing efficiency and reducing labor costs. By effectively utilizing the welding time for material setup, the machine ensures maximum productivity and streamlines the overall workflow.
