Step Down Grinding Machine-H3
Device description:
1. The body and components are cast by Milhanna high grade cast
iron FC30, which is artificially normalized heat treatment and then
treated by natural aging. Components are processed by YASDA, MITSUI
SEIKI, TOSHIBA, ELB and other world-class equipment once clamping
processing. Precision size can be up to micron level, to ensure
high precision equipment basic components.
2. Machine guide rails and precision ball screws are continuously
lubricated by automatic lubrication system to ensure longer service
life and accuracy. The cooling system is separated from the body to
eliminate vibration and favorable heat dissipation.
3.Equipped with Siemens 828D CNC automatic grinding system, and
secondary development, man-machine dialogue fool operation, with
many optional equipment to choose from, including inner hole
grinding device, automatic end measuring device, automatic outside
diameter measuring device, etc.
4. The grinding feed system is composed of a V and a flat track of
hand-crafted precision shovel, with automatic lubrication system
and C3 level precision grinding ball screw, which can achieve
smooth movement, excellent repeated positioning accuracy and long
track life.
5. The standard configuration of the grinding wheel spindle is rear
four and rear two bearing structure. High precision dynamic and
static pressure spindle can also be selected, which has the
characteristics of high rotation precision, high dynamic stiffness,
good vibration resistance, high grinding efficiency and good
grinding surface quality. For special work-piece grinding, the
grinding wheel speed can be adjusted, up to 3500 RPM and 60m/s.
6. The tail seat is designed to be both rigid and robust. A
hardened alloy steel sliding cylinder encrusted in the cast iron
body is designed to carry the MT4 top core. The jacking force of
the sliding cylinder can be easily changed by adjustment knobs at
the rear. Special accessories oil pressure tail seat with a pedal
to facilitate unloading work parts.
7.Siemens numerical control system as the standard configuration,
after secondary development, all Chinese operation interface, easy
to use. Equipped with Siemens high performance servo motor, the
equipment CNC system and drive system have better compatibility, at
the same time with automatic sand repair and automatic compensation
function, to ensure the stability and precision of feed and
grinding.
Technical specification:
| Project | Unit | Model:FX32P-60CNC |
Processing capacity
| Maximum rotating diameter of table | mm | 320 |
Maximum distance between
two thimbles | mm | 600 |
| Maximum grinding diameter | mm | 320 |
| Maximum load between two parietal hearts | Kg(b) | 60(top work)/20 (working head only) |
| Grinding wheel size (diameter × width × aperture) | mm | 455×38(32-50)×127 |
| Grinding wheel speed | rpm | 1650 |
| Maximum linear speed of grinding wheel | m/s | 40(high speed grinding wheel up to 65) |
| Grinding wheel dressing | mm | Automatic type |
Grinding wheel head
| Feed Angle | Deg | 90 |
| Feed stroke | mm | 250 |
| X axis fast moving speed | m/min | 6 |
| Minimum X-axis feed | mm | 0.001 |
Head frame | Spindle speed | rpm | 50-500 |
| Spindle form | | Simultaneous or centering |
| Thimble specification | | MT-4 |
Tail seat | Automatic telescopic distance | mm | 40 |
| Thimble specification | | MT-4 |
worktable | Z axis fast moving speed | m/min | 8 |
| Minimum z-axis feed | mm | 0.001 |
| Maximum travel | mm | 550 |
| Angle of rotation | Deg | + 6/-9 |
Motor
| Grinding wheel spindle motor | KW | 3.75/5.5 |
| X-axis feed motor (servo) | KW | 2.2 |
| Z-axis feed motor (servo) | KW | 2.2 |
| Head frame spindle motor | KW | 0.75 |
| Cooling pump motor | KW | 0.75 |
| Lubricating oil motor | KW | 0.25*2 |
| Tail stock oil pump motor | KW | 0.75 |
Other
| Net machine weight | Kg | 3300 |
| Gross machine weight | Kg | 3500 |
| Package size (length * width * height) | mm | 2800*2000*2000 |
1.Automation:Manipulator/robot
Manipulator automatic scheme Robot automatic scheme (optional)
2.Manipulator device:
Automatic loading and unloading machine manual power supply of 3
ANCA servomotor, through the combination of precision rail and ANCA
control system, in the process of feeding and receiving materials,
can be efficient, accurate, convenient to complete the whole
feeding and receiving process.
3.Tray device:
The loading capacity of the material preparation tray and the
closing closing is 340~510PCS. The operation is convenient and
flexible. It only needs to be lifted and put back at the four
holes.

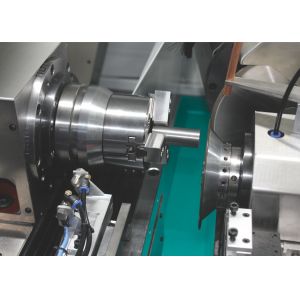

4.Loading and unloading device:
Using two pneumatic finger cylinders, unloading products. A
rotating cylinder for Angle adjustment, adjustment Angle of 0~90°
