Product Description:

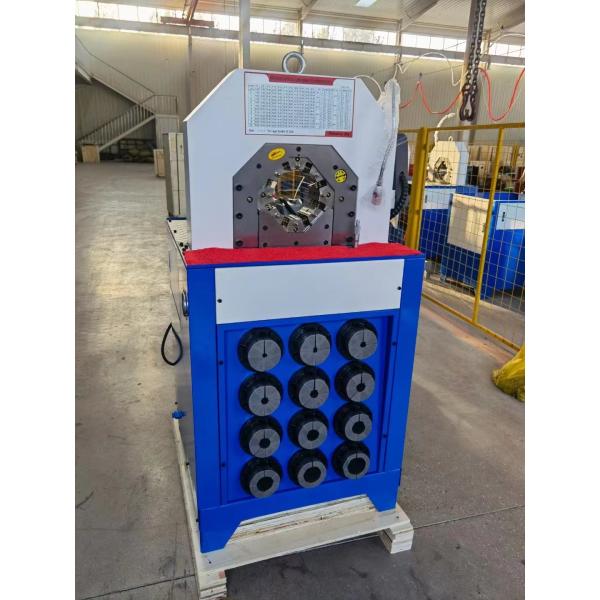

The AC Hose Crimping Machine is the perfect choice for hose
fabrication, providing maximum flexibility and speed. It is
designed to withstand higher speed and volume requirements, with a
fast crimping speed of 10-15s/time and an output volume of 10L/16L
for a pump. This machine is also capable of withstanding higher
pressure and faster speed. With 15 sets of dies, it can accommodate
a range of hose sizes from 6-76mm, and is particularly suitable for
super thin hoses.
| crimping range | 6-76 mm(1/4~3") |
| quantity of dies | 15 sets |
| accuracy | 0.01 mm |
| output volume of pump | 10L/16L |
| system pressure | 31.5mpa |
| motor power | 5.5kw/7.5Kw |
| voltage | 110V/220V/380V/415V
50/60Hz(optional) |
| crimping force | 1500 t |
| work efficiency | 300pcs/h |
| maximum open diameter | 165 mm |
| the max open tolerance | 60 ±mm |
| machine dimension | 1000*800*1630 mm |
| package dimension | 1100*850*1730 mm |
| net weight | 1250 kg |
| gross weight | 1300 kg |
Features:
- Product Name: AC Hose Crimping Machine
- Crimping Force: 1500T
- Size: 1000*800*1630 Mm
- Crimping Precision: ±0.01mm
- Crimping Speed: 10-15s/time
- Control System: PLC/BUTTON/DIGITAL PANNAL
- Withhold Faster, Untra-thin and Precise Crimping
Technical Parameters:
| Parameter | Detail |
|---|
| Max Opening | 6-76mm, 3 inch |
| Crimping Precision | ±0.01mm |
| Output volume of pump | 10L/16L |
| Weight | 1250KG |
| Crimping Type | One-time Crimping |
| Motor Power | 5.5KW |
| Power Supply | 220V/380V/415V/440V |
| Crimping Speed | 10-15s/time, withhold faster |
| Quantity of dies | 15 Sets |
| Crimping Force | 1500T, 5-25mm |
Applications:
FY-CBK120 AC Hose Crimping Machine is designed with brand name FY,
model number FY-CBK120 and origin from China. It has a max opening
of 158mm, motor power of 5.5KW, crimping type of one-time crimping
and crimping force of 1500T. It has quantity of dies for 15 sets
and accepts 6-76mm hose, which is super thin and offers more
pressure. It features high frequency and high efficiency in hose
crimping.
Customization:
AC Hose Crimping Machine with FY Brand
- Model Number: FY-CBK120
- Place of Origin: China
- Power Supply: 220V/380V/415V/440V
- Size: 1000*800*1630 Mm
- Ultra-Thin Crimping Speed: 10-15s/time
- Crimping Range: 6-76mm
- Model: AC Hose Crimping Machine
- Withhold Faster: 6-76mm
Support and Services:
AC Hose Crimping Machine Technical Support and Service
We provide technical support and service for AC Hose Crimping
Machine. Our team of experts is available to answer any questions
you may have regarding the machine and its operations. We strive to
provide timely and accurate information so that you can get the
most out of your machine.
We provide comprehensive training on the use and maintenance of the
AC Hose Crimping Machine. Our team of experts can provide you with
detailed instructions on how to safely use the machine and maintain
it over time. We also provide you with troubleshooting tips and
advice to help you quickly identify and fix any issues that may
arise.
We offer routine inspections and maintenance to ensure that your AC
Hose Crimping Machine is operating at its peak performance. Our
team of experts can also help you identify any potential problems
before they become major issues. We can provide you with the
necessary replacement parts and accessories to keep your machine
running smoothly.
At AC Hose Crimping Machine, we strive to provide the highest
quality technical support and service for our customers. Our team
of experts is available to answer any questions you may have and
provide you with the information you need to get the most out of
your machine. Contact us today to learn more about our technical
support and service.
Packing and Shipping:
The AC Hose Crimping Machine is packaged and shipped in sturdy,
high-density cardboard boxes. The boxes are double-sealed with
plastic and foam, and all components are securely wrapped in bubble
wrap. All packages are labeled with a tracking number and clearly
labeled with the contents of the package.
The packages are insured for the full value of the product and
shipped via a reputable carrier, such as UPS, FedEx, or DHL. We
also offer expedited shipping for customers who need their orders
quickly. We strive to ensure that all packages arrive safe and
sound.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is FY. - Q: What is the model number of this product?
A: The model number of this product is FY-CBK120. - Q: Where is this product made?
A: This product is made in China. - Q: What is an AC Hose Crimping Machine?
A: An AC Hose Crimping Machine is a device used to mechanically
assemble a hose and fittings to form a hose assembly. - Q: What are the benefits of using an AC Hose Crimping Machine?
A: An AC Hose Crimping Machine is used to increase the strength of
the connection between the hose and fittings, as well as to create
a tight seal. This ensures that the hose assembly is leak-proof and
can withstand high pressure.
