Description
Hardfacing wear plates are widely used in mining machinery, coal
mine machinery, environmental protection machinery, engineering
machinery, etc., and are also commonly used as high-strength
structural steel with a yield strength of ≥850MPa.It is mainly to
protect the occasions or parts that need wear resistance, so that
the equipment life is longer, and the maintenance shutdown caused
by maintenance is reduced, and the capital investment is
correspondingly reduced.
Specifications

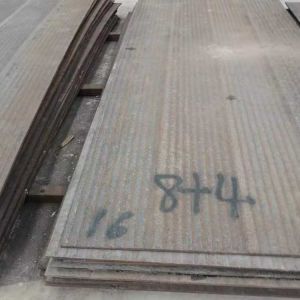

| Product Name | 1500x3000mm, 1200x2400mm CrC Wear Plate For Container Chromium
Carbide Plate Hardfacing Cladded Plate |
| Base Plate | Q235B, All weldable steels, mostly structural steels |
| Hardfacing layer | High chromium high carbide overlay |
| Chemical Composition | Take 12mm wear deposite for example: C : 4.3-4.8% Cr : 23-30% Mn : 0.8-1.1% Mo: 0.08-0.18 Ni:0.08-0.15 Other Metal elements : Micro |
| Microstructure | The carbide (Cr7C3) volume fraction on the microstructure is above
50% |
| Hardness | around HV 600 |
| Surface Treatment | Hardfacing,clading,coated |
| Technique | Hardfacing,open arc welding,submerged arc welding |
| Wear Resistance | High wear resistance,30 times higher than low carbon steel and 12
times than heat treated steel |
| Impact Resistance | Medium |
| Flatness tolerance | ±3mm/m |
| Thickness tolerance | Uniform overlay thickness, with tolerance within 0-0.5mm |
| Plate Size | Open arc welding wear plate: 1400*3400mm Submerged arc welding wear plate: 1400*3400mm ; 1400*3500mm ;
2100*3500 mm; Customized. |
| Main Thicknesses | 3+3,4+4, 5+5 |
| 6+4,6+5,6+6,6+8 |
| 8+4,8+5,8+6,8+7,8+8 |
| 10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20 |
| 12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12 |
| 14+6,14+8,14+10,16+6,16+8,16+10 |
| 18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10 |
| Customized. |
| Plate Size | Open arc welding wear plate:1400*3400mm |
| Submerged arc welding wear plate:1400*3000mm, |
| 1400*3500mm, 2100*3500mm. |
| Customized |
| Feature | High wear resistance
12-20 times higher than common plate
5-10 times than low alloy steel plate
2-3 times than high chromium cast iron plate |
| Place of Origin | China |
| Application | concrete industry, metallurgy,fan industry, coal industry, mining
machinery,construction machinery,chemical machinery etc. |
Product Features
Hardfacing Wear Plate has high wear resistance, impact resistance,
deformation and weldable properties, can be directly curled and
deformed, cut and punched like steel plate, and processed into
engineering components to meet the wear of the mine into use.
1. High wear resistance
2, good impact resistance
3, good heat resistance
4, good corrosion resistance
5, strong applicability
6, convenient processing performance
7, high price-performance ratio.
Application
Chromium Carbide Overlay (CCO) plates find application in various
industries and equipment that experience high levels of wear. Some
common applications of CCO plates include:
- Mining: CCO plates are widely used in mining operations for
equipment such as buckets, truck bed liners, conveyor chutes, and
screens. They provide excellent wear resistance against abrasion
caused by rocks, minerals, and ore.
- Cement: In the cement industry, CCO plates are used in equipment
like hoppers, cyclones, and fan blades, which are subjected to
abrasive materials like limestone, clay, and cement clinker.
- Power Generation: CCO plates are employed in power plants for
applications such as coal chutes, pulverizer systems, and ash
handling equipment. They protect against the abrasive effects of
coal, ash, and other combustion byproducts.
- Steel Production: Equipment in steel mills, such as slag chutes,
coke bins, and furnace components, benefit from the wear resistance
provided by CCO plates. They withstand the impact and abrasion
caused by the handling and processing of raw materials and molten
metal.
- Construction and Earthmoving: CCO plates are used in construction
and earthmoving equipment like excavator buckets, bulldozer blades,
and crusher liners. They protect against wear caused by rocks,
gravel, and abrasive soils.
- Recycling and Waste Management: CCO plates are utilized in
recycling and waste management facilities for applications such as
shredder blades, conveyor systems, and sorting equipment. They
provide protection against wear caused by processing various
materials.
- Pulp and Paper: Equipment in the pulp and paper industry, including
chip conveyors, debarking drums, and pulp digester components, can
benefit from the wear resistance of CCO plates.
- Dredging: CCO plates are used in dredging operations for equipment
like dredge buckets, pump casings, and cutter heads. They offer
protection against abrasion caused by sand, gravel, and other
sediments.
FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer for steel plates, and our
company also is a very professional and technical foreign trade
company for steel products. We have more export experience with
competitive price and best after-sales service. Apart from this,we
can provide a wide range of steel products to meet the requirement
of customer.
Q2: What are your main products?
A2: Our main products are chromium carbide overlay wear plates,
also known as CCO wear plates, bimetallic wear plates, hardfacing
wear plates, cladding wear plates, and composite wear plates.
Q3: Can you provide samples?
A3: Yes, we can provide samples for customers to do tests, please
contact us to get more details.
Q4: What's your payment term?
A4: This term can be negotiated. We accept TT and LC payments.
Q5: Will you delivery the goods on time?
A5: Yes,we promise to provide best quality products and delivery on
time no matter if the price change lot or not. Honesty is our
company's tenet.
Q6: What's your production capacity?
A6: 150,000 m2/year.
Q7: Do you accept the third party inspection?
A7: Yes absolutely we accept.
