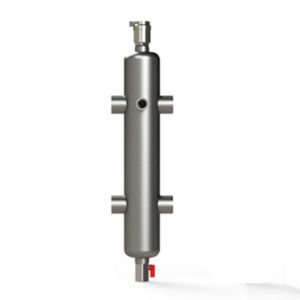

Good Quality Steel Floor Heating Hydraulic System Parts Water
Pressure Separator
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat
Exchanger manufacturer specialized in development,Production and
global marketing of pasteurizer heat exchangers. Since the very
start in 2004 BAODE has grown to one of the leading companies in
China Plate heat exchanger market and has developed a big range of
pasteurizer heat exchangers for any task
Our main products are Brazed pasteurizer heat exchanger & Gasket
pasteurizer heat exchanger & Air cross pasteurizer heat exchanger
(Flat pasteurizer heat exchanger and frame and pasteurizer heat
exchanger, welded pasteurizer heat exchanger). Braze pasteurizer
heat exchanger include Copper brazed pasteurizer heat exchanger and
Nickel brazed pasteurizer heat exchanger.
Our mission is to help you to achieve the optimum solution with
regards to performance efficiency, payback and energy conservation,
whatever the application. This is based on a marketing orientation
concept which makes us a highly valuable partner. Our combined
experience in the pasteurizer heat exchanger industry, allow us
giving the best technical recommendation for our customers and end
users for applications such as:Refrigeration Systems that
includes,HVAC includes,Other Industrial applications.
FUNCTIONNING
Hydraulic separators are devices used to separate and isolate
different fluid streams, usually hot water & cold water, They are
designed improve system efficiency and reduce maintenance by
preventing the mixing of fluids of different temperatures or
compositions, which can cause a variety of problems, including
uneven heating or cooling, corrosion, and sediment buildup.
It creates a barrier between two fluid streams so that they can
flow independently without affecting each other's properties, The
device consists of a rectangular vessel with a baffle inside that
creates a buffer zone between the two streams. The buffer zone
allows the fluids to mix and equilibrate their temperatures without
creating turbulence or disturbance in the main streams.
TECHNICAL SPECIFICATIONS
Separate air and dirt
Offered with drain valve
Stainless steel housing
Provided with wall bracket
Maximum operating pressure 150 psi
Maximum operating temperature 132°C (270°F)
Equipped with automatic air vent
Model | DIMENSION | WEIGHT | FLOW RATE |
| FNPT Connect | A | B | D | E | I |
| in | in | mm | in | mm | in | mm | in | mm | in | mm | lbs | kg | GPM | m³/h |
| CB100 | 1 | 3.1 | 80 | 23 | 585 | 7.5 | 192 | 8.7 | 220 | 6.8 | 172 | 6.6 | 2.8 | 11 | 2.5 |
| CB125 | 1 1/4 | 3.1 | 80 | 25 | 636 | 8.3 | 207 | 9.5 | 240 | 7.4 | 187 | 7.5 | 3.4 | 18 | 4 |
| CB150 | 1 1/2 | 4.3 | 110 | 27 | 686 | 8.7 | 222 | 10.2 | 260 | 8 | 202 | 10.3 | 4.7 | 26 | 6 |
| CB200 | 2 | 5 | 127 | 29 | 736 | 8.9 | 227 | 11.8 | 300 | 8.1 | 207 | 12.8 | 5.8 | 39 | 9 |
Product name
| Hydro Separator |
| Material | Stainless Steel |
| Model | CB100-CB200
|
| Custom | Accept |
