Plate Heat Exchanger Gasket Heat Exchanger Gaskets Replacement
Parts
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat
Exchanger manufacturer specialized in development,Production and
global marketing of pasteurizer heat exchangers. Since the very
start in 2004 BAODE has grown to one of the leading companies in
China Plate heat exchanger market and has developed a big range of
pasteurizer heat exchangers for any task
Our main products are Brazed pasteurizer heat exchanger & Gasket
pasteurizer heat exchanger & Air cross pasteurizer heat exchanger
(Flat pasteurizer heat exchanger and frame and pasteurizer heat
exchanger, welded pasteurizer heat exchanger). Braze pasteurizer
heat exchanger include Copper brazed pasteurizer heat exchanger and
Nickel brazed pasteurizer heat exchanger.
Our mission is to help you to achieve the optimum solution with
regards to performance efficiency, payback and energy conservation,
whatever the application. This is based on a marketing orientation
concept which makes us a highly valuable partner. Our combined
experience in the pasteurizer heat exchanger industry, allow us
giving the best technical recommendation for our customers and end
users for applications such as:Refrigeration Systems that
includes,HVAC includes,Other Industrial applications.
Heat Exchanger Plates , also known as plate heat exchanger plate or
plate heat exchanger fin, is the most important component of plate
heat exchanger, and it is a part for measuring the heat transfer
efficiency of plate heat exchanger. Its quality directly affects
the heat transfer effect and overall performance of plate heat
exchangers.
Heat exchanger gasket
The plate heat exchanger realizes the sealing between plates
through the sealing gasket, which prevents the leakage of fluid and
can bear certain pressure. At the same time, the two kinds of media
flow through their own channels through the sealing gasket, without
mixing with each other. Therefore, the quality of the gasket plays
a very important role in the use quality of the plate heat
exchanger. The ability of the plate heat exchanger to bear internal
pressure and the degree of temperature resistance are basically
determined by the gasket.
Baode has a wide variety of domestic plate heat exchanger plates,
more models! It can provide all common types of plate heat
exchanger plates from well-known brands at home and abroad.

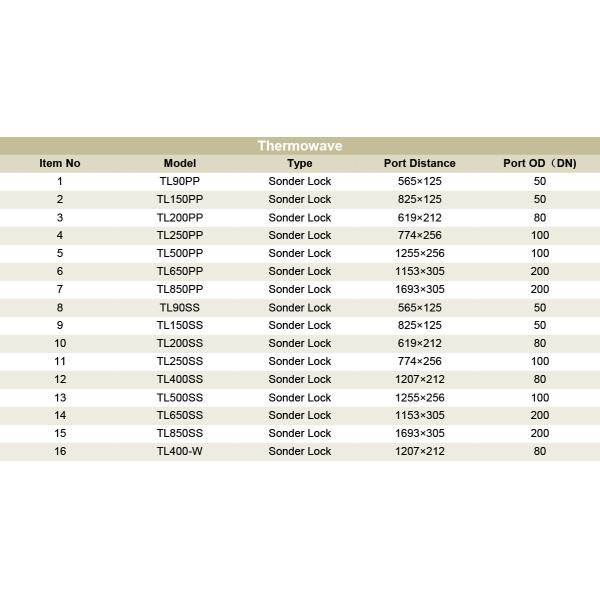

| Thermowave |
Model | Type | Port Distance | Port OD(DN) |
| TL90PP | Sonder Lock | 565×125 | 50 |
| TL150PP | Sonder Lock | 825×125 | 50 |
| TL200PP | Sonder Lock | 619×212 | 80 |
| TL250PP | Sonder Lock | 774×256 | 100 |
| TL500PP | Sonder Lock | 1255×256 | 100 |
| TL650PP | Sonder Lock | 1153×305 | 200 |
| TL850PP | Sonder Lock | 1693×305 | 200 |
| TL90SS | Sonder Lock | 565×125 | 50 |
| TL150SS | Sonder Lock | 825×125 | 50 |
| TL200SS | Sonder Lock | 619×212 | 80 |
| TL250SS | Sonder Lock | 774×256 | 100 |
| TL400SS | Sonder Lock | 1207×212 | 80 |
| TL500SS | Sonder Lock | 1255×256 | 100 |
| TL650SS | Sonder Lock | 1153×305 | 200 |
| TL850SS | Sonder Lock | 1693×305 | 200 |
| TL400-W | Sonder Lock | 1207×212 | 80 |
| Gasket |
| Material | Applicable Temp | Applicable fluids |
| NBR | -15°C to +135°C | Water, Sea water, Mineral oil,Salinous water |
| EPDM | -25°C to +180°C | Hot water, Steam Acid, Alkali |
| F26 | -55°C to +230°C | Acid,AIkali |
| FTP | 0°C to +160°C | High Concentrated acid,AIkali,High temmpereture oil, steam |
