    Electromagnetic flowmeter HygienicMaster FEH300

    Ask Lasest Price
    Brand Name : ABB
    Model Number : FEH300
    • Product Details
    • Company Profile

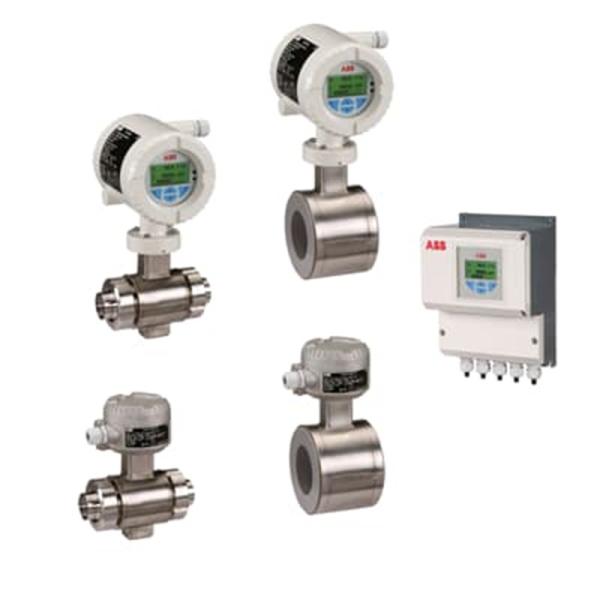

    Electromagnetic flowmeter HygienicMaster FEH300

    The HygienicMaster FEH300 standard version is designed specifically for the food & beverage, pharmaceutical and biotechnical industries. Manufactured from FDA approved materials and certified in accordance with 3-A.
    Available as integral mount design or remote mount design system.

    Looking for a electromagnetic flowmeter with enhanced functionality and extended diagnostic functions? Find out more about HygienicMaster FEH500.


    Overview

    The stainless steel exterior, the variable process connection, the advanced signal processing and the state-of-the-art data storage provide a complete and cost effective flow solution.
    HygienicMaster FEH300 is a versatile, reasonably priced, most accurate flow meter tailored for all process industry applications. A flowmeter with base functionality, short delivery and a simple and clearly understandable documentation.

    • Intuitive and simple configuration
      – Through glass configuration eliminating the need to remove the cover and reducing commissioning time
      – Soft key based functionality
      – "Easy Set-up" function
    • State-of-the-art memory technology
      – Data storage enables transmitter exchange without the need for reconfiguration
    • Diagnostics for real-life-situations
      – Status messages in accordance with NAMUR
      – Help texts in LCD display
    • ScanMaster in situ verification software option
      – Allows the customer to perform in situ verification of the flowmeter and the plant

    Data

    General specifications:

    • Measuring value error
      – Standard 0.4 % of rate, optional 0.2 % of rate
    • Nominal diameter
      – DN 3 to 100 (1/10 to 4 in.)
    • Process connection
      – Wafer type design
      – Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS
      – Threaded pipe connection in accordance with DIN 11851
      – Weld stubs
      – Tri-Clamp in accordance with DIN 32676, ASME BPE
      – External thread in accordance with ISO 228 / DIN 2999
    • Lining
      – PFA (vacuum tight)
    • Process connection material
      – Flange: stainless steel
      – Variable process connections: 1.4404
    • Communication
      – HART, PROFIBUS PA, FOUNDATION Fieldbus
    • Explosion protection approvals
      – ATEX, IECEx, FM, cFM, NEPSI, GOST
    • Certificates
      – 3-A, FDA-approved material

    Special features:

    • Process diagnosis
      – Empty pipe detection

    Quality Electromagnetic flowmeter HygienicMaster FEH300 for sale
