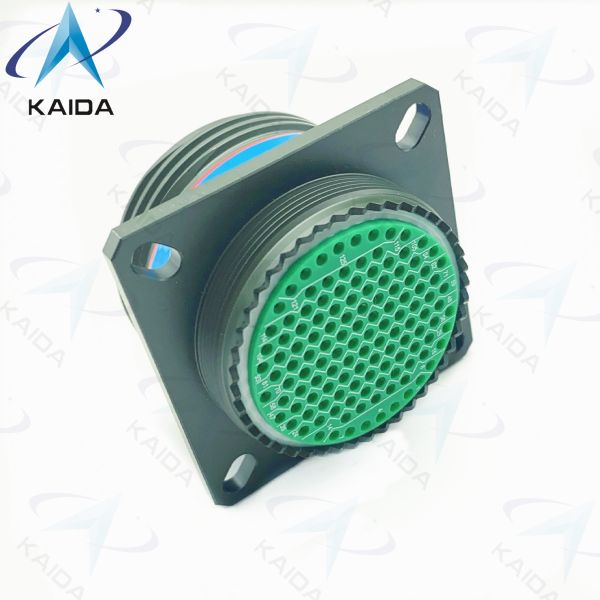

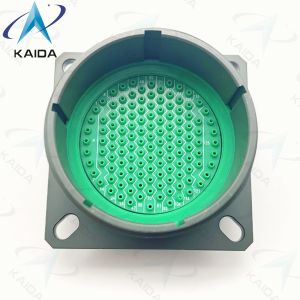

500V Rated MIL-DTL-38999 Series Ⅲ Featuring Olive Green Cadmium
Shell Finish.128 Male Pins.D38999/20WJ35PN
Part Number:D38999/20WJ35PN
Product Description:
MIL-DTL-38999 Series Ⅲ is a military standard connector that meets
the highest performance requirements for a variety of applications.
It is designed for high-reliability and harsh environments. It
features a voltage rating of 500V, contact material of copper
alloy, operating temperature range of -55°C to +125°C, threaded
coupling type, and gold contact finish. This connector is designed
to meet the toughest military requirements and is highly reliable
and durable for use in military, aerospace, and other demanding
applications.
MIL-DTL-38999 Series Ⅲ connectors provide superior performance in
extreme environmental conditions, and are suitable for use in a
variety of applications, including high-reliability military and
aerospace applications. The connectors are manufactured to the
highest quality standards and feature a robust design and reliable
contact performance. The gold contact finish provides excellent
electrical and wear performance, and the threaded coupling type
ensures secure and reliable connection.
The MIL-DTL-38999 Series Ⅲ connector is the ideal solution for
harsh-environment applications, providing superior performance and
reliable operation. It is designed to meet the most demanding
military requirements and is a reliable, durable, and
cost-effective solution for a variety of applications.
Features:
- Product Name: MIL-DTL-38999 Series Ⅲ Receptacle
- Shell Size: 25
- Number of Contacts: 128
- Shell Finish: Olive Green Cadmium
- Operating Temperature: -55°C To +125°C
- Contact Material: Copper Alloy
Technical Parameters:
| Attribute | Value |
|---|
| Product Name | MIL-DTL-38999 Series Ⅲ |
| Voltage Rating | 500V |
| Coupling Type | Threaded |
| Contact Material | Copper Alloy |
| Number of Contacts | 128 |
| Contact Finish | Gold |
| Operating Temperature | -55°C To +125°C |
| Connector Type | Receptacle |
| Contact Type | Crimp |
| Current Rating | 7A |
| Shell Size | 25 |
Applications:
MIL-DTL-38999 Series Ⅲ manufactured by KAIDA is a military-grade
connector series specifically designed for high-reliability
applications. The model number for this product is D38999/20WJ35PN,
which is manufactured in China with 25 shell size. It is
constructed with copper alloy material for contacts and has an
operating temperature ranging from -55°C to +125°C. It is also
rated for 7 A of current and has a gold contact finish. This
product meets the MIL-DTL-38999 Series Ⅲ specification, which is a
standard for high-quality connectors used in military and aerospace
applications. It is designed for harsh environments and is suitable
for applications where maximum reliability is needed.
Customization:
Customized services for MIL-DTL-38999 Series Ⅲ, with Receptacle connector type, Olive Green Cadmium shell finish, and Threaded coupling type.
Brand Name: KAIDA
Model Number: D38999/20WJ35PN
Place of Origin: China
Current Rating: 7 A
Operating Temperature: -55°C To +125°C
Support and Services:
MIL-DTL-38999 Series Ⅲ provides technical support and services,
which include:
- Design consultation
- Software and hardware updates
- Product maintenance and repair
- Technical support and troubleshooting
- Training and education
Packing and Shipping:
Packaging and Shipping for MIL-DTL-38999 Series Ⅲ
MIL-DTL-38999 Series Ⅲ connectors will be packaged in accordance
with the manufacturer’s recommended guidelines. When shipping, they
should be placed in sealed containers with moisture and dust
protection. They should be handled with extreme care to prevent
damage.
FAQ:
- Q:What is the Brand Name of MIL-DTL-38999 Series Ⅲ?
- A:The Brand Name of MIL-DTL-38999 Series Ⅲ is KAIDA.
- Q:What is the Model Number of MIL-DTL-38999 Series Ⅲ?
- A:The Model Number of MIL-DTL-38999 Series Ⅲ is D38999/20WJ35PN.
- Q:Where is MIL-DTL-38999 Series Ⅲ made?
- A:MIL-DTL-38999 Series Ⅲ is made in China.
- Q:What are the key features of MIL-DTL-38999 Series Ⅲ?
- A:MIL-DTL-38999 Series Ⅲ features a high degree of ruggedness,
durability and reliability, and is suitable for use in high
vibration environments.
- Q:What type of applications is MIL-DTL-38999 Series Ⅲ suitable for?
- A:MIL-DTL-38999 Series Ⅲ is suitable for aerospace, military,
industrial, and other harsh environment applications.
