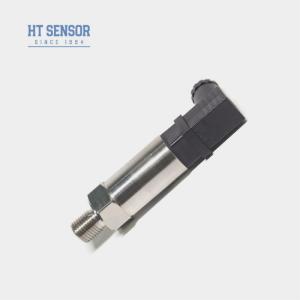

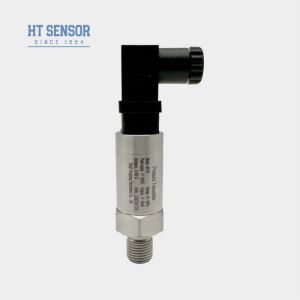

BP157TC mini DIN industrial pressure sensor transmitter uses
Ceramic sensor as the signal measurement element.The signal
processing circuit is located in the stainless steel shell, the
sensor signal is converted into a standard output signal.Products
through the components, semi-finished and finished products
strictly detection and screening of ageing, to ensure stable and
reliable performance.The mini DIN industrial pressure sensor
transmitter adopts welded structure and is widely used in air
conditioning, refrigeration and heat pump systems. Industry
standard 4~20mA or 0.5~4.5V signal output, international electrical
connector three-pin plug and standard pressure port. The product
allows control and ensures that the system operates in safe and
stable conditions.
Product Features of mini DIN industrial pressure sensor:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design
3. High precision, all stainless steel structure.
Applications of mini DIN industrial pressure sensor:
1. Pressure measurement of non-corrosive gases and liquids with
316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum,
chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters of mini DIN industrial pressure sensor: |
| Measurement Range | 0kPa ~ 500kPa…5MPa |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
1. When selecting the product, please ensure that the medium to be
measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type
products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the
power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended
that users install lightning protection devices on-site and ensure
that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring
is -20ºC to 250ºC. When the product's operating temperature is
below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials.
If not specified, it will be supplied with polyethylene cable
material. If you require a different cable material, please specify
it in the order.
7. For special requirements such as strong vibration, instantaneous
impact force, strong electromagnetic or radio frequency
interference, please inform our company and specify them in the
order.
| Order Guide |
| BP15X | Analog Pressure Transmitter |
| Code | Outline Construction |
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector |
| Measurement Range | 0kPa ~ 10kPa…5MPa |
(0-X)Kpa
or MPa | X: Indicates the Actual Measuring Range |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal | |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| Code | Pressure Connection |
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others(¢50.4 Flange) |
| Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
