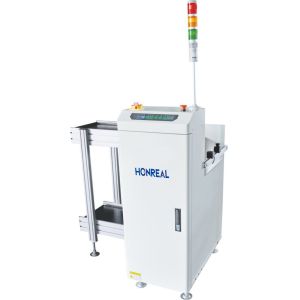

Mini Size Smt Magazine Rack Loader Unloader For Pcbs With OEM/ODM
Services For Pcb Board Transmission
Product introduction:
- This unit is used to send PCBs out from magazine to SMT production
line .
- Stable and reliable PLC control system;
- Easy to operate LED touch screen control interface;
- The pneumatic clamps of top and bottom three point provided for the
magazine alignment;
- Effective thrust design can ensure the PCB is unbroken;
- 3magazines loading capability.
- Direction from left to right or right to left(optional).
- Machine always fault monitoring;
- Solid and stable design;
- SMEMA port is compatible;
Technical parameters
|
| Function | This unit is used to send PCBs out from magazine to SMT production
line |
PCB thickness
| Min0.6mm |
Magazine number
| Transport up:1pcs,transport down:1ps,(or customized) |
Step pitches select
| 1-4(10mm step pitches) |
PCB loading time
| Approx 6 seconds |
Magazine change-over time
| Approx 30 seconds |
Transport direction
| Left to right/right to left(optional) |
Transport height
| 900±20mm(or customized) |
Air pressure
| 4-6 bar, MAX30L/minute |
Power supply
| 100-230V AC(customized) single phase, MAX 300V/A |
| Specifications |
| Model No | HR-250D | HR-330D | HR-390D | HR-460D |
| PCB size (L×W)～(L×W)mm | (50x50)～(350x250) | (50x50)～(455x330) | (50x50)～(530x390) | (50x50)～(530x460) |
| Machine size (L×W×H)mm | 1080×770×1200 | 1280×850×1200 | 1450×920×1200 | 1450×990×1200 |
| Magazine size (L×W×H)mm | 355×320×563 | 460×400×563 | 535×460×570 | 535×530×570 |
| Weight | 110kg | 130kg | 150kg | 165kg |
