    300PCS Automatic PCB Vacuum Loader with SMEMA Signal

    Ask Lasest Price
    Brand Name : HONREAL
    Model Number : HR-350XB
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 100SET/Month
    Delivery Time : 10-20Workdays
    • Product Details
    • Company Profile

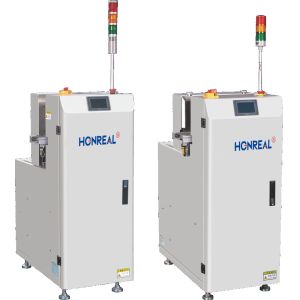

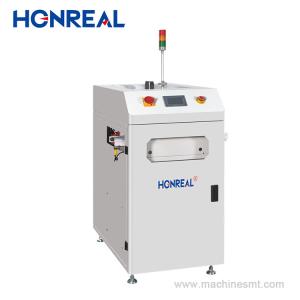

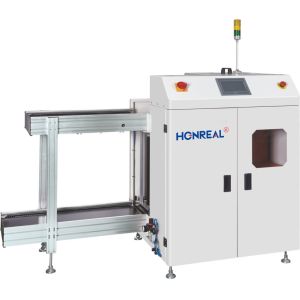

    300PCS Automatic PCB Vacuum Loader with SMEMA Signal

    Automatic Bare Board Vacuum PCB Loader Machine For Smt Assembly Line With SMEMA Signal


    Description

    This equipment is used for PCB bare boards material operation on the production line

    Features

    1.Applies to the PLC + touch screen control, easy to operate.

    2.Enclosed design ensures highest leavel of safety.

    3.Adjust the position of the suction nozzle to ensure the clamping of PCB.
    4.Smooth and parallel width adjustment (lead screw)

    5.Smooth and accurate translation (stepping motor)

    6.Minimize the transmission gap between conveyors.

    7.With SMEMA signal.


    Technical parameters
    Function

    This unit is used to PCB bare boards material operation on the production line

    Maximum PCB capacity

    300 pcs Min0.6mm

    PCB loading time

    Approx 6 seconds

    Transport directionLeft to right/right to left(optional)
    Transport height900±20mm(or customized)
    Air pressure4-6 bar, MAX30L/minute
    Power supply100-230V AC(customized) single phase, MAX 300V/A


    Specifications

    Model No


    HR-350XBHR-460XB
    PCB size (L×W)~(L×W)mm(50x50)~(450x350)(50x50)~(550x460)
    Machine size (L×W×H)mm750×1050×1200850×1150×1200
    Weight120kg160kg
