Front Open Outdoor LED Signs Support Steel or Aluminum LED Cabinet
Front Open Road LED Display Sign
Features and Advantages:
- Using high efficiency IC driver and improved PCB design
- Front Open cabinet with fast operation and maintenance
- High brightness above 5000nits, visible from every direction even
face to direct sunshine.
- High IP Rating IP65, good waterproof and dust resistance,
suitable for every condition.
- Wide viewing angle 160° V/H
- Good heat dissipation with fans and using brand power supply,
long lifespan.
- Input voltage: 110V/220V AC, 50/60Hz
- Steel cabinet or Aluminum cabinet
- Cabinet/LED Sign size customized according to LED module size
320X160mm
- Support single face or double face with one LED cabinet
Steel or alumium cabinet could be choosed
- Fast and clean checking when open the cabinet lock.
- High Brightness above 5000nits, High refresh rate above 3840hz
- Cabinet size, thickness, materials, additional function (wifi,
4G, temperature/humidity sensor....) could be customized
according to your project
Parameters:
| Model | E-A2 | E-A2.5 | E-A3 | E-A4 | E-A5 | E-A6 | E-A8 | E-A10 |
| Pixel Pitch | 2mm | 2.5mm | 3.0769mm | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1211 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 250000 pixels/m2 | 160000 pixels/m2 | 105625 pixels/m2 | 62500 pixels/m2 | 40000 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
Module Dimensions (W x H)(mm) | 160 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 |
| Module Resolution | 80 x 80 | 128 x 128 | 104 x 104 | 80 x 80 | 64 x 64 | 48 x 48 | 40 x 40 | 32 x 32 |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear |

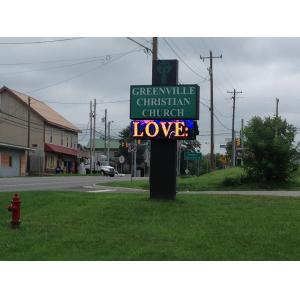

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
6. 24/7 hrs online service
