P2.6 P2.9 P3.9 P4.8 SMD Indoor Rental LED Display Panel Size
500x1000mm
Movable Indoor Stage Rental LED Display
500X1000mm LED Display
Application:
Indoor Di-LK Series Rental led screen is widely used in advertising
leasing, video conference, product release,stage background,
wedding celebration and so on , it use die-casting aluminum,
hoisting, stowage,back frame fixed installation requirements. ,it
has high refresh and gray-scale ,high contrast ,high quality fine
picture.
Light and strong cabinet design with quick locate handle lock can
be quickly and easily assembled in various ways, it can be used in
variety of occasions ,to meet different customer requirement for a
variety of applications.
Features:
- Pixel Pitch : Hot selling P2.604mm,P2.976mm,P3.91mm,P4.81mm
- Easy Maintenance Independent waterproof module ; front service
and rear service by magnet ; quick installation and disassembly;
time and labour saving.
- Corner Protection Design Protect the vulnerable corners during
transportation.
- Trinity Positioning System Magnet, pin and linear rail ensure
quick installation and precise evenness.
- Ultra Slim and Lightweight 7.5kg/panel, thickness 80mm/panel
- Module Security Lock Prevent modules from falling off or
loosening due to the vibration or weakened magnet.
- Support curve shape with angle adjustable lock
Parameters:
| Model | Di-LK2.6 | Di-LK2.9 | Di-LK3.9 | Di-LK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 14kg | 14kg | 14kg | 14kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / |

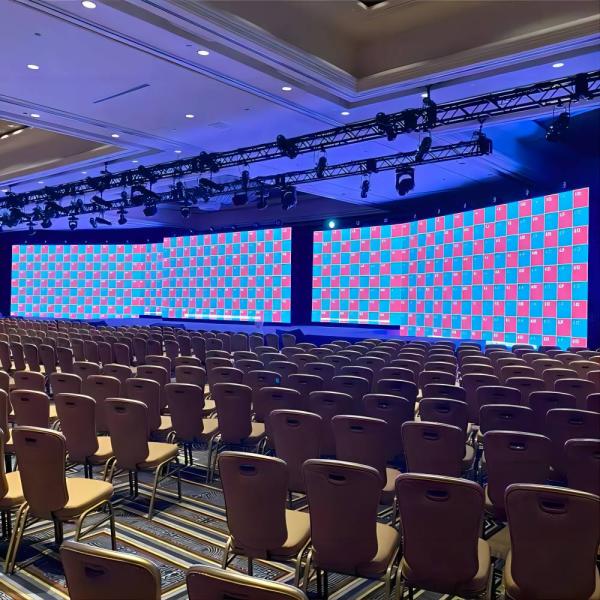

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
