    E120 E200 E312 E320 E325 E330 E336 Concrete Demolition Crusher Hydraulic Pulverizer For Excavators

    Ask Lasest Price
    Brand Name : Huilian
    Model Number : E120 E200 E312 E320 E325 E330 E336
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 PCS per month
    Delivery Time : 1-7days
    • Product Details
    • Company Profile

    E120 E200 E312 E320 E325 E330 E336 Concrete Demolition Crusher Hydraulic Pulverizer For Excavators

    Hydraulic pulverizer

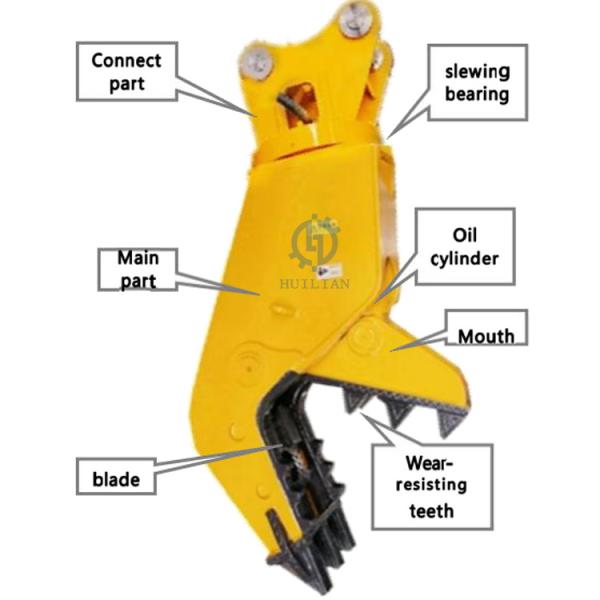

    Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.
    1. Large bore dual cylinders: Strong power and excellent durability.
    2. Speed up valve: Fast cycle time.
    3. Lighter and stronger structure: Material Hardo x 400-500;high precision
    4. 360 degree hydraulic rotation optional.
    5. Working efficiency is two or three times of hydraulic breaker
    6. Large opening design,working easily and conveniently.
    7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time.
    8. Low noise, can be used for city and high-tech


    Working Conditions
    Mainly used in demolition site, stone factory and other places, crushed concrete, ties, poles and other materials will be separated, sorted, shear, recovery operations. Widely used in demolition, railway, municipal gardens, road and briHLe construction and other construction fields


    Main Features:
    1. Large bore dual cylinders: Strong power and excellent durability.
    2. Speed up valve: Fast cycle time.
    3.Lighter and stronger structure: Material Q345B; high precision.
    4. 360 degree hydraulic rotation optional.
    5. Working efficiency is two or three times of hydraulic breaker .
    6. Large opening design,working easily and conveniently.
    7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time.
    8. Low noise, can be used for city and high-tech


    E120 E200 E312 E320 E325 E330 E336 Concrete Demolition Crusher Hydraulic Pulverizer for Excavators

    Part nameWarranty periodwarranty scope
    Main structure12Damage caused by non-compliance with the operation specifiCATEEEEEEEEions, cracking caused by reinforcement without the consent of the company is not within the warranty scope; 3 months steel plate cracking, cracking parts replacement; 3 months to steel plate, welding bead cracking within 6 months of the company to provide free maintenance, bear the one-way freight back to the factory; If the quality problem occurs within 6 months and 12 months, the company will provide free maintenance, only charge for the replacement parts, and no other costs will be borne.
    Oil cylinder6The oil seal is guaranteed for 3 months. If the oil cylinder leaks, cracks or breaks within 3 months, the pipeline connection is correct and the new product will be replaced free of charge. If any problem occurs within 6 months, the company will repair it free of charge and only charge for the replacement parts.
    Food valve3Do not add lubriCATEEEEEEEEing oil in time to cause excessive wear, wear to more than 3MM is not within the claim scope
    pipeline3pipeline joint due to the quality of clamping joint burst warranty for 3 months, improper maintenance, external force collision, excessive adjustment of the overflow valve pressure caused by the damage manufacturers are not responsible for.
    Shearing force1Shear knife blade non-external impact fracture free replacement, rolling edge, slag, knife body scratch loss, and operation directly related, not within the scope of quality assurance
    The shaft pin belongs to the wearing parts, and it is easy to cause excessive wear when lubriCATEEEEEEEEing oil is not added, so it is not in the scope of warranty; All kinds of bolts and joints Pedal switch, all broken, broken parts are not covered by warranty

    Our Excavator Hydraulic Pulverizer Product Parameter

    Item/ModelUnitHL150Q-XHL200Q-XHL300Q-X
    External Dimensionsmm1870*1080*4602460*1320*5402550*1420*635
    Maximum Openingmm630820970
    Blade lengthmm160160160
    FlowL/min120-180180-240180-260
    PressureKg/cm2220-280280-320280-320
    WeightKg101017502050
    Head crushing forceT406585
    Middle crushing forceT80120150
    Number of cutting timeN/min10-1310-1310-13
    Suitable
    excavator
    T12-1820-2826-36

    Product Maintenance:
    1. Daily checkpoint: Whether there is any damage or deformation of the body, hose interface leakage, damage to the pin and bushing and its replacement
    cycle, check the bolt and nut tightening loose state, check the oil level of the
    gear, check the gear loosening, tighten the bolt loosening. 2 . Conventional checkpoint: the seals and rotating parts of the hydraulic
    cylinder will wear out, and should be replaced in time after reaching the
    service life. Replacement parts should be matched with the original factory. 3. Check the tightening state of bolts, install new bolts, check 8 hours after use, and ensure that the tightened bolts are not loose. Damaged bolts should be
    replaced in time. Bolts should be replaced after approximately 1500 hours or
    12 months of use after installation. 4 . When the demolition shears are in use, it is recommended to check whether
    there is oil leakage regularly to ensure no fault. 5. Every four hours (less frequent play) : fill lubriCATEEEEEEEEing oil, lubric
    6. Every half year or 1000 hours (whichever comes first) : replace the hydraulic
    cylinder oil seal and motor oil seal once. If the oil seal is not replaced within
    the prescribed period, there is a certain probability that other parts of the
    product will be damaged, such as: the cylinder pulled the cylinder body, etc.


    Company Profile
    Guangzhou Huilian Machinery Equipment Co., Ltd

    Guangzhou Huilian Machinery Equipment Co., Ltd. is a professional development, production and sales of hydraulic crushers,quick couplers, high frequency vibration crushers, hydraulic shears, hydraulic crushers, stone apples, log grabs and other accessories for construction machinery.
    Hydraulic grapple is widely used for handling, loading and unloading materials, sugarcane, wood, stone, steel slag, grabbing ,garbage, scrap metal and other special operations, As one of the leading Excavator attachment manufacturers in China, Huilian has a full range of grapples suitable for all kinds of brands excavators.
