NPT BSPT 150PSI Screwed Stainless Steel Threaded Fittings Cross Tee

    Buy cheap NPT BSPT 150PSI Screwed Stainless Steel Threaded Fittings Cross Tee from wholesalers

    Buy cheap NPT BSPT 150PSI Screwed Stainless Steel Threaded Fittings Cross Tee from wholesalers
    • Buy cheap NPT BSPT 150PSI Screwed Stainless Steel Threaded Fittings Cross Tee from wholesalers

    NPT BSPT 150PSI Screwed Stainless Steel Threaded Fittings Cross Tee

    Ask Lasest Price
    Brand Name : DEYE
    Model Number : STH-TH-10
    Certification : ISO9001:2015 PED
    Price : USD0.5-USD50 for each pc
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 1000000PCS one month
    Delivery Time : 7 days for stock items
    • Product Details
    • Company Profile

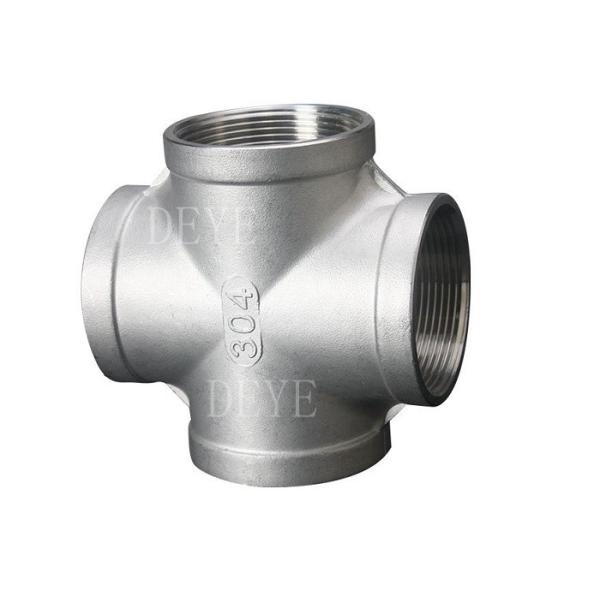

    NPT BSPT 150PSI Screwed Stainless Steel Threaded Fittings Cross Tee

    150PSI NPT BSPT STAINLESS STEEL SCREWED THREADED PIPE FITTINGS CROSS TEE


    The 150# cross tee also callled 4- way Tee, worked as branch of the low pressure pipeline.

    Class 150 pipe cross tee are used in piping system to alter directions and to make connections among the equipment. The cross tees are used to regulate the low-pressure fluid or gas. It is usually used for non-critical and low cost applications. The size ranges are from 1/8” to 4” (DN6 to DN100).


    Product Information/Product Description/Basis Information/Specification


    DescriptionNPT BSPT 150PSI Screwed Stainless Steel Threaded Fittings Cross Tee
    Product namethreaded NPT BSPT 150PSI Elbows, Reducers, Coupling, Plug, Bushing, Union, Tee, cross, caps Stainless Steel Screwed Pipe Fittings Threaded Pipe Fittings
    Union, Hex Nipple, bushing, reducer socket, 45 90 degree elbow, Square Head plug, coupling, Y pipe joints tee
    Size1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8"
    GasketNBR, FKM
    ThreadBSPT,BSPP, NPT,PS , DIN
    Materialstainless steel201,202, stainless steel304, stainless steel 316
    Casting MethodInvestment precision casting, CNC machine
    ApplicationOil, Water, Industrial, Chemical
    Test pressureUsually 150PSI
    Packagepcs/polybag, polybag/carton, cartons/pallet or according to your requirement
    Advantages1.OEM and Customized service can be provided
    2. With experience,quality guaranteed
    3. Approved by ISO9001:2015
    4. With independent open mold capacity, OEM supposed

    Technology/ Technical Data Sheets


    90° Elbow90° Street Elbow45° Elbow
    TeeCrossHex. Nipple
    Hex. PlugSquare PlugHex. Cap
    Round CapCoupling (Socket)Half Coupling

    SIZEL1L2L3L4L5L6L7L8L9L10L11L12
    1/8”161816172522181713---
    1/4”191919203030182115152511
    3/8”242025243431192317172612
    1/2”25.5202826373522241917.53215
    3/4”29.5233230433924251820.53317
    1”362639365145272720.523.53819
    1-1/4”43.530454459482634.52225.54422
    1-1/2”46.5334947645029.535.52326.54423
    2”55.53857547457323625.5285025
    2-1/2”66456966906436.54328.5315829
    3”7452-74997037.546.530.5336633
    4”9064-9011579425238.5377236

    Production Process



    Common used Material Grade


    SS316 Chemical Composition

    ASTM A351 CF8M, SS316 Chemical Composition in %

    ASTM A351 CF8M, SS316 Chemical Composition in %
     CMnPSSiNiCrMo
    Min.     9.018.02.00
    Max.0.0801.5000.0400.0401.50012.021.03.00

    SS316 Mechanical Properties of the Fittings at room temperature


    SS316/SS316LTensile Strength Rm (N/mm2)Upper Yield Point ReH (N/mm2) min.Elongation at rupture A5
    (%)
    min.
    Hardness Test (HRB)
    Min.48520530
    Max.   80

    SS304 Chemical Composition


    ASTM A351 CF8, SS304 Chemical Composition in %
     CMnPSSiNiCrMo
    Min.     8.018.0
    Max.0.0801.5000.0400.0402.00011.021.00.50

    SS304 Mechanical Properties of the Fittings at room temperature


    SS304/SS304LTensile Strength Rm (N/mm2)Upper Yield Point ReH (N/mm2) min.Elongation at rupture A5
    (%)
    min.
    Hardness Test (HRB)
    Min.48520535
    Max

    Application/ Usage:


    Threaded pipe fittings are commonly used in Water gas pipes, small diameter water pipes, compressed air pipes and low-pressure steam pipes.
