Old Transformer Oil Fuller Earth Regeneration Plant ZYD-II-50(3000LPH)

Application

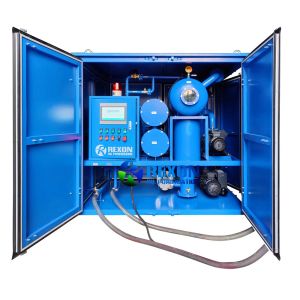

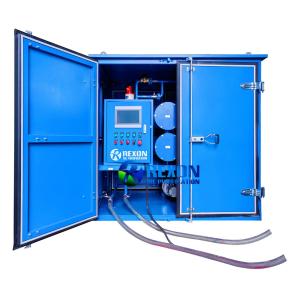

Rexon Old Transformer Oil Fuller Earth Regeneration Plant is a high vacuum oil dehydration, oil degassing and oil filtration system combined with a high efficient oil regeneration device which contains sufficient fuller's earth for oil regeneration process. This oil regeneration system is especially applied to regenerate used and aging transformer oil, insulating oil. Series ZYD-II system can deal with not only low voltage oil, but also high voltage oil like 110KV, 500KV, 1000KV. It can perform a perfect and super high efficient oil purification, oil filtration and oil recycling process to old transformer oil. The high-quality weather-proof enclosure will protect the machine in clean & dry condition, it is very suitable for onsite projects use.

Features
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.

2. Oil Regeneration Devices for oil color, acid and oil smell reconditioning.
3. Big capacity of moisture and gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
4. Duplex-stereo film evaporation technology, combined with unique and advanced dewatering, and degassing components, can rapidly and effectively separate water, and gas from oil.
5. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil highly efficiently and make oil highly pure.
6. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
7. Double-infrared liquid level sensor, pressure protective system, and foaming elimination system to ensure the machine operates easily and safely.
8. Adopt an interlocked protective system, which connects the oil pump, heater, and liquid level sensor, avoiding blank heating, blank pumping, oil leaks, and electricity leaks. If there is any fault, the machine will be powered off automatically.
9. It can be operated both online and offline by transformers.
10. Can be used independent device for vacuuming transformers that are above 110KV and can vacuum oil filling for power equipment.
11. Can work online for 150 hours continuously, highly reliable and long time running.
12. PLC programming control system and touch screen to achieve machine working fully automatically.

13. Mobile trailer and weather-proof enclosure are available for option.

Advantages
Besides the oil purification and oil regeneration treatment to used transformer oil on-site, ZYD-II Old Transformer Oil Fuller Earth Regeneration Plant can be used as an independent powerful vacuum producer to supply vacuum to transformers, making transformer vacuum evacuation, oil injection to transformer very high efficient. So one system equals to three system which can do all above jobs, and achieve a successful and high efficient on-site transformer oil and transformer maintaining purpose.

Technical Parameters
