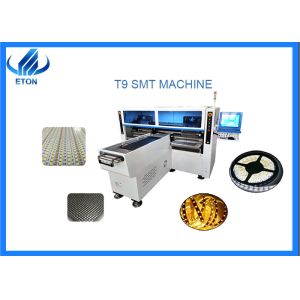

    LED Neon Roll To Roll Strip Mounting Machine Pick And Place Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-T9
    Certification : CE, CCC, SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days after receive the down-payment
    • Product Details
    • Company Profile

    LED Neon Roll To Roll Strip Mounting Machine Pick And Place Machine

    LED neon roll to roll strip mounting machine


    Machine profile

    1.The fixing method of PCB board is: vacuum adsorption, cylinder clamp, and adjustable track width.

    2. Adopt the domestic top brand Hikvision camera and the drag chain of Germany igus.

    3. The X and Y axes are linear motors, which makes the mounting accuracy higher, the service life longer and the speed faster.

    4..50M soft light belt production machine, producing 4 different materials at the same time without affecting high production capacity.


    Technical parameter

    ModelHT-T9
    Dimension
    Length3100mm
    Width2300mm
    Height1550mm
    Total Weight1700kg
    PCB
    PCB Length Width250mm*any length
    PCB Thickness0.5-1.5mm
    PCB ClampingVacuum adsorption, cylinder splint, adjustable track width
    Mounting ModeGroup picking and separately placing
    O.S.
    SystemWindows7
    SoftwareR&D independently
    DisplayTouch screen monitor
    Input DeviceKeyboard, Mouse
    Vision System
    No. of Camera5 PCS ( Digital camera)
    Vision alignment, MARK correction
    Repeat mounting Precision±0.02mm (Repeat precision)
    Mounting Height≦5mm
    Mounting Speed200000~250000CPH
    ComponentsLED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
    Components Space0.5mm
    No. of Feeders Station68 PCS
    No. of head68 PCS
    Power380AC 50 HZ
    Power Consumption6kw
    Operating Environment23℃±3℃
    Conveyor transmissionMax Length :1000 mm
    Transmission speed>500mm/sec
    Transmission DirectionSingle(left→ right or right→ left)
    Transmission ModeOnline drive
    Positioning WayOptical
    Gas consumption0.4-0.6mpa (4-6kgf/cm2)150N/min
    Electrical controlIndependent research and development by ETON
    Motion control card module 1 setIndependent research and development by ETON
    X,Y,Z Axis Drive wayHigh-end magnetic linear motor+ servo motor
    Feeding wayElectric feeder with double motor


    Other machine

    We not only provide mounter, we also provide, loading machine, docking station, printing machine, reflow soldering, translational machine, AOI, SPI, etc.


    FAQ

    1.What are the main application about the pick and place machine?

    We have many different machine, and different machines apply to different applications. The main products include panel light, ceiling light, LED bulb, LED tube etc. For example, the professional mounter HT-f9 is available for flexible strip and LED tube.

    2.How about the operation software of the machine?

    Our software are Independent R&D by ourselves with 2 language( English and Chinese).

    3.How about your after sales services?

    We have ONE YEAR Maintenance period. When you are operating ,you can communicate with our engineer for help any questions.

    4.what can you buy from us?
    Solder paste stencil printer, conveyor, Pick and place machine, reflow oven and All equipment related to the smt production line

    5.What’s the terms of payment?

    T/T is OK. You can choose FOB Shenzhen.
