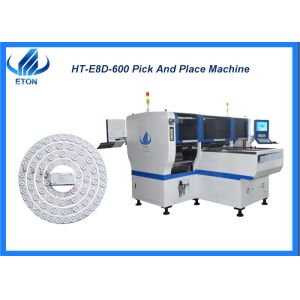

    2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-E8D-600
    Certification : CE,CCC,SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting

    Driver mounting Electronic feeder dual arm 2200kg SMT placement machine


    Product description
    E8D-600 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.

    Features:

    • Dual system, dual module multifunctional mounter to produce two different products at the same time.
    • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
    • Component: Min. Size 0402, Max. Height 15mm.
    • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

    Exclusive Patented Technology:

    • Electronic feeder feeding system.
    • Vision alignment flight identification, Mark correction.
    • Non- stop material re-loading function.
    • Auto-optimization after coordinates generated, etc.

    Machine parameter

    ModelHT-E8D-600
    Dimension1950mm*2250mm*1650mm
    Total weight2200kg
    PCB length width

    Max:600*300mm

    Min:100*100mm

    PCB thickness0.5-5mm
    PCB clampingAdjustable pressure pneumatic
    Mounting modeGroup picking and separately placing, Separately picking and separately placing
    Mounting precision±0.04mm
    Mounting speed90000CPH
    No. of feeders station48PCS single module
    No. of head24 PCS single module

    Machine application

    Packages

    As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.

    Service

    • Professional solutions: Provide professional SMT Full line solutions
    • Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
    • Free Installation: On-site free installation to ensure smooth production.
    • Free Technical Training: Professional training of operating and maintenance.
    • Free Technical Support: 7 * 24 technical online support.
    • Free Software Upgrade: Offer free software upgrade whole lifetime

    Related machine

    ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

    FAQ

    Q. How long is the machine maintenance period, whether it is free?

    A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.


    Q.What is your merits of the machine to others production?

    A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
