Product Description:

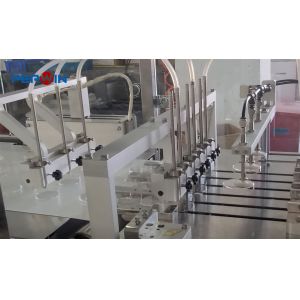

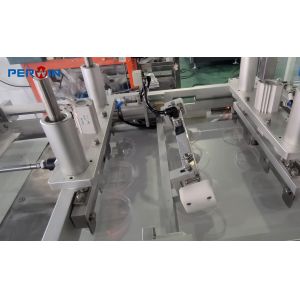

The Petri Dish Filling Machine is an automatic apparatus designed
for filling petri dishes with a precise volume of liquid. It is
equipped with an integrated servo sinking and stacking unit that
allows for efficient dish stacking. This machine is capable of
filling volumes ranging from 4ml to 70ml, and can be set to a
cooling time of 3 to 5 minutes. The single-station stacking method
is adopted, allowing for 10 pieces to be packed in a stack.
Customers can also set the number of stacking layers independently.
The Petri Dish Filling Robot is the ideal choice for laboratories
and research institutes seeking a reliable, efficient, and accurate
device to quickly and accurately fill Petri dishes. It is suitable
for a wide variety of applications, including medical, biological,
and chemical research. Durable and easy to operate, the Petri Dish
Filling Apparatus offers users the highest level of accuracy and
reliability. The Petri Dish Filling Machine is the perfect choice
for any lab looking to quickly and accurately fill Petri dishes.
Features:
- Petri Dish Filling Machine: A specialized machine used for quickly and accurately filling
Petri dishes.
- Dish stack: The single-station stacking method is adopted, and every 10 pieces
are packed in a stack (customers can set the number of stacking
layers independently).
- Capping method: Servo Technology Control fixed-point cap closing.
- Filling volume: 4ml~70ml.
- Pure steam generator: 100kg/h.
- Changeover parts: Equipped with three other specifications. 90mm double-zone dish
and 65mm single zone dish.
Technical Parameters:
| Technical Parameter | Details |
|---|
| Preparation tank | 30L, 60L And 100L Agar Sterilization Reactors Per Line (specific
Requirements Are As Follows.)
Agar Sterilizers Will Be Used To Prepare A Variety Of Media, With
Or Without Blood And/or Supplements. Therefore, Jars Should Be
Sterilized For Agar At 121°C For At Least 15 Minutes. Then Cool To
38-45°C And Hold This Temperature Steady For At Least 8 Hours.
With Fluid Input Port The Thermometer Should Be Of The Highest
Accuracy, The Mixer Should Have Multiple Levels, Say These Are The
Basic Requirements, The Tank Will Be For A Variety Of Agars, Not A
Specific Few. |
| Material | SUS304 And SUS316 |
| Lanes | 3 Lanes |
| Weight | 1000kgs |
| Power Consumption | 7.5kw |
| Cooling time | 3~5min, Customer Can Set Accordingly. |
| Light | Lighting System In The Cooling Area Of The Whole Line |
| Sheep blood adding system | With One Peristaltic Pump, Blood Bag Storage Rack, Exclusive FFU
Area. The Sheep Blood Is Placed On A Special Shelf (with Casters). |
| Bi-plates filling | Servo Mechanism Orientation Unit. |
| Dish shaking mechanism | Especially After Adding Sheep Blood, The Junction Of The Wall Of
The Dish Is Clear And Tidy, And The Surface Of The Contents Is
Smooth And Clean. Increase The Adhesion Between The Contents And
The Wall Of The Vessel, To Ensure That It Does Not Fall Off During
Transportation, Storage And Use, And The Quality Is Stable. |
Applications:
PERWIN PW-PP3-650 Petri Dish Filling Machine
This PERWIN PW-PP3-650 Petri Dish Filling Machine is designed for the automation of Petri dish filling. It features
an advanced Petri dish filling mechanism, servo mechanism orientation unit, dish separating and suction cap mechanism for higher efficiency and accuracy. The machine is equipped with
an Inkjet printing system that can reserve holes at the bottom of
the Petri dish in the conveyor belt. It is capable of filling 90mm
single zone dish, 90mm bi-plates dish, 65mm contact dish and 65mm
single zone dish. All of its components are certified with CE, ISO,
GMP, UL, TUV, SGS. The minimum order quantity is 1 and the price is negotiable. It has a 1 year warranty and it is packed in export standard wooden cases with delivery time of 60 working days. The supply ability is 10pcs/month. Payment terms are TT.
Customization:
PERWIN PW-PP3-650 Petri Dish Filling Machine
Brand Name: PERWIN
Model Number: PW-PP3-650
Place of Origin: Qidong, Jiangsu
Certification: CE, ISO, GMP, UL, TUV, SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export Standard Wooden Cases
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 10pcs/month
Petri Dish Filling Machine Features:
- Dish shaking mechanism: Especially After Adding Sheep Blood, The
Junction Of The Wall Of The Dish Is Clear And Tidy, And The Surface
Of The Contents Is Smooth And Clean. Increase The Adhesion Between
The Contents And The Wall Of The Vessel, To Ensure That It Does Not
Fall Off During Transportation, Storage And Use, And The Quality Is
Stable
- Product specifications: For 90mm Single Zone Dish, 90mm Bi-plates
Dish, 65mm Contact Dish, 65mm Single Zone Dish
- Filling volume: 4ml~70ml
- Filling Accuracy: ±1~3%
- PLC: SIEMENS From Germany
Keywords:
Petri Dish Filling Mechanism, Petri Dish Fill Machine, Petri Dish
Filling System, Petri Dish Filling Equipment
Support and Services:
We offer technical support and service for our Petri Dish Filling
Machine. Our technical support team is available to answer any
questions about the machine or how to use it. We also offer
maintenance and repair services for the machine. Our service team
can provide assistance with any issues you may have with the
machine. We strive to keep your machine running smoothly and
efficiently.
FAQ:
Q1: What is the brand of this Petri Dish Filling Machine?
A1: The brand of this Petri Dish Filling Machine is PERWIN.
Q2: What is the model number of this Petri Dish Filling Machine?
A2: The model number of this Petri Dish Filling Machine is
PW-PP3-650.
Q3: Where is this Petri Dish Filling Machine made?
A3: This Petri Dish Filling Machine is made in Qidong, Jiangsu.
Q4: What certifications does this Petri Dish Filling Machine have?
A4: This Petri Dish Filling Machine has CE, ISO, GMP, UL, TUV, SGS
certifications.
Q5: What is the minimum order quantity for this Petri Dish Filling
Machine?
A5: The minimum order quantity for this Petri Dish Filling Machine
is 1.
