The whole process of vacuum adsorption transmission, using 7.5KW
high-efficiency energy-saving frequency conversion motor, all
ceramic adsorption paper feed wheel, the paper feeding is accurate
and smooth. 0 pressure does not hurt the cardboard.
Servo die cutting is equipped with German Rexroth servo motor and
independent servo die cutting.
The ink transmission system is designed to be reformed. It adopts
imported motor with cross link shaft and gear transmission to
reduce noise, enhance the tightness of the transmission, improve
the running speed and stability of the machine, and improve the
printing precision and overprint precision.These machines are designed to accomplish a variety of tasks that
were once considered impossible or difficult to achieve with
traditional printing and cutting equipment. With advanced features
and capabilities, these machines are essential for any modern
printing or packaging operation.

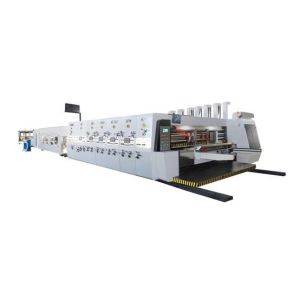

One of the most notable features of a flexo printer slotter die
cutter machine is its ability to print, cut, and fold material in a
single pass. This means that the machine is able to accomplish in a
matter of minutes, what would have taken hours for traditional
printing and cutting equipment. Additionally, these machines come
with advanced computer-controlled systems that help operators to
achieve unparalleled precision and accuracy in their printing and
cutting jobs.
Another essential feature of these machines is their flexibility.
Users can choose from a wide range of materials to print and cut,
including cardboard, corrugated board, plastic, and other
materials. Additionally, these machines can print in a variety of
colors and styles, allowing users to create customized packaging
and promotional materials that stand out from the competition.
Overall, the flexo printer slotter die cutter machines are a
must-have for any modern printing or packaging operation. Their
advanced features, flexibility, and precision make them an ideal
choice for those looking to create high-quality packaging and
promotional materials that meet the highest standards in the
industry.
Printer Unit
1, printing roller
1) Printing roller ¢ 405.6 (including diameter ¢ 410)
2) Seamless steel pipe material, surface grinding, hard chrome
plating.
3) Balance correction and smooth operation.
4) Ratchet fixed coil plate shaft, full-hanging grooved hanging
plate. It is equipped with a hanging correction function, which
saves the hanging time and improves work efficiency.
5) When loading and unloading plates, the electric control of the
foot switch is reversed.
6) Phase adjustment: The printing roller is equipped with automatic
zero return device, and adopts PLC multi-function touch screen
control, touch screen man-machine interface, click to enter the
plate roller phase adjustment interface; with automatic zero
return, automatic plate and preset print position, etc. Features.
7) The axial adjustment is electric adjustment, and the adjustable
distance is 10mm each.
2, embossing roller
1) High-quality seamless steel pipe, which is made by deep hole
boring and boring.
2) The outer diameter of the stamping stick is ¢154mm.
3) High frequency hot loading, double disc welding.
3) Balance correction, remove the centrifugal force and run
smoothly.
4) The embossing roller gap dial shows electric adjustment, the
adjustment range is 1-11mm, and it is connected by the cross
slider. When adjusting, the transmission gear will always ensure
the correct position to engage.
How to maintaining machines
Maintaining machines is crucial to ensure their reliability,
longevity, and efficiency. Here are some tips for keeping your
machines in top-notch condition:
1. Regularly clean the machines to prevent dirt and debris buildup.
This will prevent overheating and damage to internal components.
2. Lubricate parts that require it, such as chains and bearings.
This will help reduce friction, wear and tear, and prolong their
life.
3. Inspect machines frequently for any signs of damage, wear or
tear, and address any issues promptly.
4. Schedule routine maintenance checks by a qualified technician to
ensure all parts are working as they should.
5. Keep machines protected from harsh weather conditions and store
them in a clean, dry, and safe environment.
By taking care of your machines, you can ensure their smooth
operation and increase their lifespan, saving you time and money in
the long run.
