    Alloy Steel FESTO Round Cylinder DSNU-32-125-PPV-A 196025 Pneumatic Air Cylinders

    Ask Lasest Price
    Brand Name : FESTO
    Model Number : DSNU-32-125-PPV-A
    Price : EXW USD25-35
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1800 pcs per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Alloy Steel FESTO Round Cylinder DSNU-32-125-PPV-A 196025 Pneumatic Air Cylinders

    FESTO Round cylinder DSNU-32-125-PPV-A 196025 Pneumatic Air Cylinders


    About product

    Cylinder barrel made of stainless steel
    Bearing and end caps made of wrought aluminium alloy
    Symbol:00991235
    Pneumatic connection:G1/8
    Material cover:Wrought aluminium alloy

    Technical Data

    Stroke125 mm
    Piston diameter32 mm
    Piston rod threadM10x1.25
    CushioningPneumatic cushioning, adjustable at both ends
    Mounting positionoptional
    DesignPiston Piston rod Cylinder barrel
    Position detectionVia proximity switch
    Symbol00991235
    Mode of operationDouble-acting
    Corrosion resistance class CRC2 - Moderate corrosion stress
    LABS (PWIS) conformityVDMA24364-B1/B2-L
    Cleanroom classClass 6 according to ISO 14644-1
    Ambient temperature-20°C-80°C
    Cushioning length14 mm
    Moving mass234 g
    Product weight565 g
    Type of mountingWith accessories
    Pneumatic connectionG1/8
    Note on materialsRoHS-compliant
    Material coverWrought aluminium alloy
    Material sealsNBR TPE-U(PU)
    Material piston rodHigh-alloy steel
    Material cylinder barrelHigh-alloy stainless steel

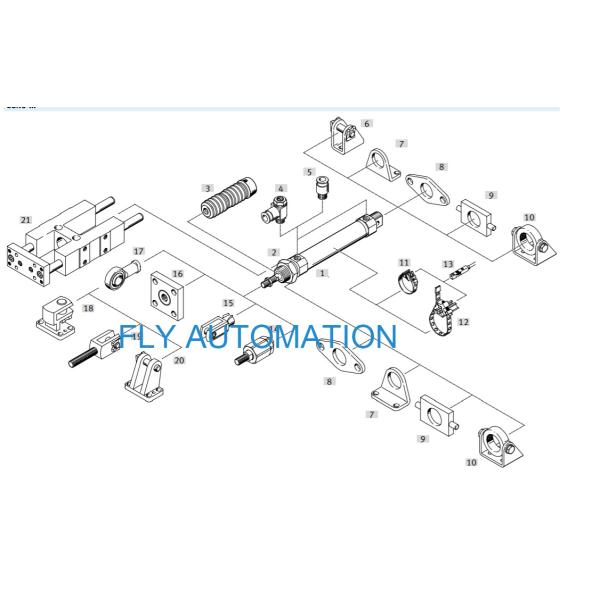

    Peripherals overview
    Delivery
    1. If the products we have in store, we will send it out ASAP after payment.
    2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
    3. Also we can send by your delivery acount if you want.
    4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

    There are so many models,please contact with me.
