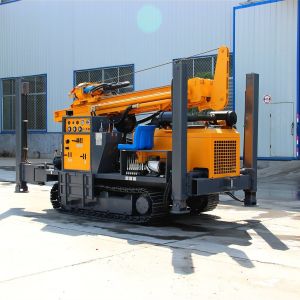

Gasoline Diesel Drill Machine Water Well Drilling Rig Machine

Product Description:

1. The chassis of the drilling rig adopts a expert visiting motor with a gearbox, which has an extended carrier life;

2. The gearbox is integrally shaped, double automobiles, more potent electricity, massive torque, more long lasting, and espresso preservation cost;

3. It adopts professional excavator chassis, which is sturdy and sturdy, bears heavy load, widespread chain plate, and has little damage to hard avenue floor;

4. Each hydraulic oil pipe is protected with a thick protecting sleeve, which makes the oil pipe have an prolonged service lifestyles;

5. Dual structures can be hooked up: 1. air electricity device with air compressor 2. mud pump desktop with dust pump


Product display:

The weight(T)
6.5
Drill pipe diameter(mm)
Φ76 Φ89
The hole diameter(mm)
140-305
Drill pipe length(m)
1.5m 2.0m 3.0m
Drilling depth(m)
260
Rig lifting force(T)
15
One-time advance length(m)
3.3
Rapid rise speed(m/min)
24
Walking speed(km/h)
2.5
Fast feeding speed(m/min)
28
Climbing angles(Max.)
30
Width of loading(m)
2.73
Equipped capacitor(kw)
70
Hoisting force of winch(T)
1.5
Using air pressure(MPA)
1.7-3.0
Swing torque(N.m)
4000-5300
Air consumption(m³/min)
17-31
Dimension(mm)
4000×1850×2300
Swing speed(rpm)
45-70
Equipped with hammer
Medium and high wind pressure series
The penetration efficiency(m/h)
10-35
High leg stroke(m)
1.4
