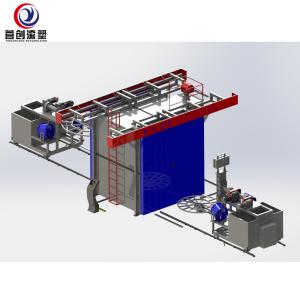

Manufacturing Plant Shuttle Rotomolding Machine With PLC Control
System
Product Description:
Our Shuttle machine is especially suitable for producing large size
products. Moreover, it is the best choice for producing various
orders on the same machine. This is due to its ability to
adequately handle mold changes during the production process and
maintain uniformity in the product in spite of large thickness
difference in the two arms and shape variations resulting in
varying molding times.
Furthermore, this machine offers three kinds of work-arm selection,
including Straight-arm, L style offset arm and C style offset arms
together with different heating methods like natural gas, liquefied
gas or diesel oil. Also, its patented insulation heating chamber
significantly reduces energy consumption and thereby lowers
production cost.
Other attractive features of this machine include its individual
running of each work-arm, interlock function to ensure safety and
stability, real-time monitoring of the heating chamber temperature
for quality control, storage of production formula for convenient
management, Siemens fully automated PLC, multiple function touch
screen for ease of operation, auto inspection of breakdown for
easier maintenance and repair, and option of remote fault
diagnosis.
Features:
The oven adopts a circular structure, which is highly efficient in
terms of space utilization. The stove is composed of 4-6
components, making it easier and more energy-saving to assemble.
The heating method adopts the principle of hot gas going up, which
is faster than other heating methods and more energy-saving. In
addition, the burner is imported from Italian Liya Road, which is
of superior quality. Moreover, the control system of Siemens
S7-1200 network cable communication can collect data and reduce the
problem of traditional lines. Plus, the wiring is designed to be
aesthetically pleasing.
Technical Parameters:
| Product Name | Shuttle Rotomolding Machine |
|---|
| Total Power | Advisory Service |
|---|
| Voltage | 220V/380V/440V |
|---|
| Applicable Industries | Manufacturing Plant |
|---|
| Operation Mode | Automatic |
|---|
| Rotating Speed | Adjustable |
|---|
| Control System | PLC |
|---|
| Cycle Time | 15-30min |
|---|
| After-sales Service Provided | Video Technical Support, Free Spare Parts, Field Installation,
Commissioning and Training, Field Maintenance and Repair Service,
Online Support |
|---|
Model No | Floor Size | Biggesttank made | | L(m) | W(m) | H(m) | Operation platform | | CS-2A-1000 | 4 | 2.8 | 2 | × | 150L | | CS-2A-1600 | 8 | 3.6 | 2.8 | × | 500L | | CS-2A-2000 | 10 | 4.6 | 3.2 | × | 1000L | | CS-2A-2500 | 12.5 | 6.2 | 4 | √ | 2500L | | CS-2A-3000 | 14 | 7 | 4.2 | √ | 4500L | | CS-2A-3500 | 16.5 | 8 | 4.5 | √ | 7000L | | CS-2A-4000 | 17.5 | 9 | 5.2 | √ | 10000L | | CS-2A-4500 | 19 | 10 | 5.9 | √ | 14000L | | CS-2A-5000 | 21 | 11 | 6.5 | √ | 20000L | | CS-2A-5500 | 23 | 12 | 7 | √ | 25000L | | CS-2A-6000 | 24.5 | 13 | 7.2 | √ | 35000L | | CS-2A-6500 | 27 | 15 | 8 | √ | 40000L | | CS-2A-7500 | 32 | 17 | 9.5 | √ | 50000L |
| |
| |
| |
Applications:
Rotational molding is an effective way to make various shapes and
sizes of products.
Its wide range of applications stretches across numerous
industries, including manufacturing, storage, automotive and even
military.
It could shape Water Tanks, Oil Tanks, Storage Boxers, Lampshades,
Urea Tanks, Inspection Wells, Roadblocks, Floats, Auto Parts,
Kayaks, Boats and Troughs, and much more.
Rotational molding proves to be versatile and cost-effective,
making it one of the foremost choices of product-fabricating
methods.
Customization:
Shuttle Rotomolding Machine
Custom Services Form YINGCHUANG
We offer custom services for our shuttle rotomolding machine at
YINGCHUANG in CHANGZHOU, China. Our machines are certified with CE
and ISO9001, and are built with a PLC control system that operates
on 220V/380V/440V. We guarantee a delivery time of 30 to 60 work
days and a supply ability of 3-5 machines per month. Its cycle time
is between 15 to 30 minutes.
We provide excellent after-sales service, including video technical
support, free spare parts, field installation, commissioning and
training, field maintenance and repair service, and online support.
Our shuttle rotomolding machine is applicable to many manufacturing
plants.
Packing and Shipping:
The Shuttle Rotomolding Machine will be packaged in a custom wooden
crate for shipping. All of the components and parts will be
securely fastened in place to ensure a safe and secure delivery.
The crate will be reinforced with corner blocks and other wooden
supports. All of the components will be wrapped with bubble wrap,
foam, and other cushioning materials. The crate will be securely
sealed and labeled for safe transportation.
The Shuttle Rotomolding Machine will be shipped with a reputable
courier. The courier will provide tracking information and
insurance for the shipment. The delivery will be made to an
appropriate address, such as a business or residential address. The
courier will also provide additional services such as lift gate,
inside delivery, or curbside delivery.
