    Dimensions 4mm-130mm Fiberglass Epoxy Resin Rod Brown Insulator Fittings Rod

    Ask Lasest Price
    Brand Name : TID POWER
    Model Number : TECR
    Certification : ISO9001:2008
    Price : Negotiate
    Payment Terms : L/C , T/T
    • Product Details
    • Company Profile

    Dimensions 4mm-130mm Fiberglass Epoxy Resin Rod Brown Insulator Fittings Rod

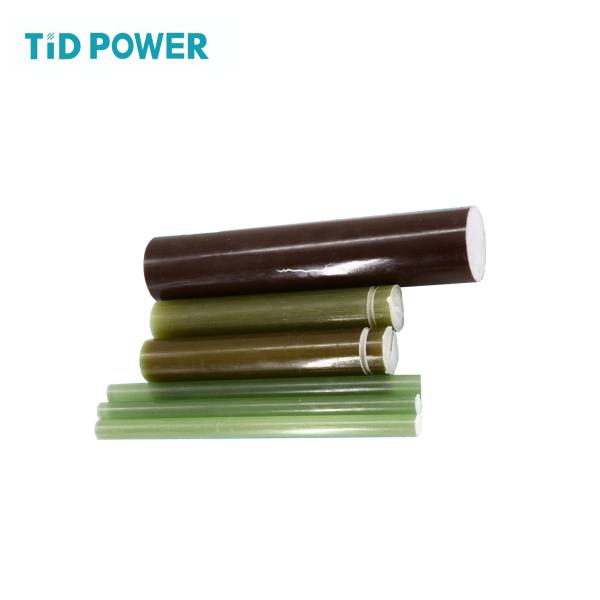

    Dimensions 4mm-130mm Green Or Brown Insulator Fittings fiberglass rod with Customized Length


    Insulating Solid Rod is made of ECR glass reinforced epoxy resin.We use continuous pultrusion procss .The products fullfill The standard of IEC61109, IEC 60855 and GB13398.

    Note:

    1. Color: light green , brown or customized colors.

    2. Length: according to Customer requirement.

    3. We offer customized products,including the new size, New surface treatment, Jointing the fitting, screw or mechanical to other shapes.


    Technical Parameters of Dimensions 4mm-130mm Green Or Brown Insulator Fittings fiberglass rod with Customized Length:


    No.Technical specificationUnitvalue
    1Density(20℃±2℃)g/cm3≥2.2
    2Water absorption rate (20℃±2℃,24h)%≤0.05
    3Tensile strengthMpa≥1200
    4Bending strengthMpa≥960
    5Dye penetrated testMin≥15
    6Water diffusion test (1%NaCl, 100h 12kv/1min)mA≤0.1
    7Shearing strength along laminasMpa≥50
    8Volume resistivity (140℃,96h)Ω.M≥1010
    9DC withstand voltage (10mm)Kv≥50
    10Lighting impulsed withstand voltage (100kv,10mm)Times≥5
    11Bending strength at heating conditionsMpa/150℃≥350
    12Torsion strengthMpa≥800
    13Stress corrosion (1mol/1HNO3,at 67%stress)h96


    The size of Fibergalss Rods


    Products CodeD(mm)L (mm)Weight (kg)Products CodeD(mm)L (mm)Weight (kg)
    TECR00400Φ410000.028TECR03600φ3610002.20
    TECR00450Φ4.510000.035TECR03800φ3810002.46
    TECR00500Φ510000.05TECR04000φ4010002.70
    TECR00550Φ5.510000.052TECR04100φ4110002.84
    TECR00800Φ810000.11TECR04200Φ4210002.99
    TECR01000Φ1010000.17TECR04500φ4510003.42
    TECR01200Φ1210000.25TECR05000φ5010004.28
    TECR01600φ1610000.44TECR05300φ5310004.75
    TECR01670Φ16.710000.49TECR05500φ5510005.12
    TECR01748Φ17.4810000.53TECR06000φ6010006.10
    TECR01800φ1810000.55TECR06350Φ63.510006.97
    TECR02000φ2010000.69TECR06800φ6810007.96
    TECR02200φ2210000.83TECR07000φ7010008.44
    TECR02400φ2410000.99TECR07620Φ76.2100010.15
    TECR02500φ2510001.07TECR08000φ80100010.90
    TECR02600φ2610001.14TECR09000φ90100014.24
    TECR02800φ2810001.47TECR11000φ110100021.36
    TECR03000φ3010001.53TECR12000Φ120100024.87
    TECR03200φ3210001.76TECR13000Φ130100029.65
    TECR03400φ3410001.97

    FAQ:

    • Q: What is the brand and model number of the Insulator Fittings?
      A: The brand name is TID POWER and the model number is TECR.
    • Q: Where is the Insulator Fittings manufactured?
      A: It is manufactured in China (SHAAN XI).
    • Q: What is the minimum order quantity for the Insulator Fittings?
      A: The minimum order quantity is 100 meter/meters.
    • Q: What kind of certifications do the Insulator Fittings have?
      A: The Insulator Fittings are certified with ISO9001:2008.
    • Q: What type of payment methods are accepted for the Insulator Fittings?
      A: We accept payment methods such as L/C, T/T,
