General Description

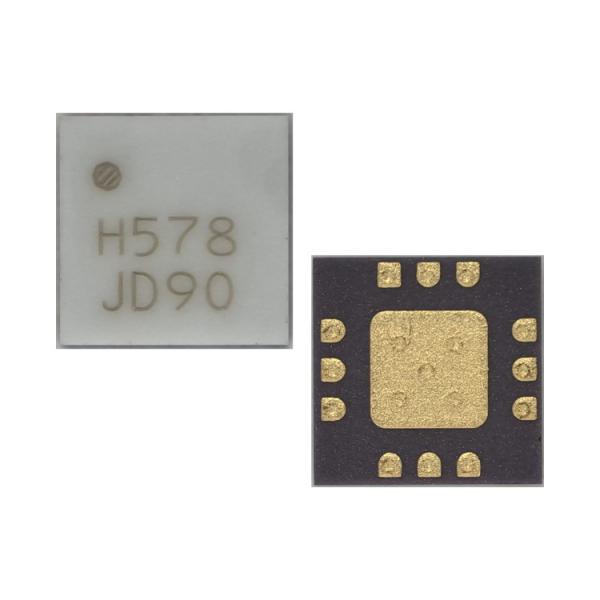

The HMC578LC3B is a x2 active broadband frequency multiplier
utilizing GaAs PHEMT technology in a leadless RoHS compliant SMT
package. When driven by a +3 dBm signal, the multiplier provides
+15 dBm typical output power from 24 to 33 GHz. The Fo and 3Fo
isolations are >20 dBc and >30 dBc respectively at 28 GHz.
The HMC578LC3B is ideal for use in LO multiplier chains for Pt to
Pt & VSAT Radios yielding reduced parts count vs. traditional
approaches. The low additive SSB Phase Noise of -129 dBc/Hz at 100
kHz offset helps maintain good system noise performance. The RoHS
packaged HMC578LC3B eliminates the need for wire bonding, and
allows the use of surface mount manufacturing techniques.
Features
High Output Power: +15 dBm
Low Input Power Drive: 0 to +6 dBm
Fo Isolation: >20 dBc @ Fout= 28 GHz
100 KHz SSB Phase Noise: -132 dBc/Hz
Single Supply: +5V@ 81 mA
RoHS Compliant 3x3 mm SMT Package
Typical Applications
The HMC578LC3B is suitable for:
• Clock Generation Applications: SONET OC-192 & SDH STM-64
• Point-to-Point & VSAT Radios
• Test Instrumentation
• Military & Space
