    ASTM D1275 Corrosive Sulfur Analyzer for Electrical Transformer Oils

    Ask Lasest Price
    Brand Name : AI
    Model Number : AIC-1275
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    ASTM D1275 Corrosive Sulfur Analyzer for Electrical Transformer Oils

    Introduction

    This Corrosive Sulfur Analyzer is used to determine corrosive sulfur compounds (both inorganic and organic) in electrical insulating liquids.
    New and in-service insulating liquids may contain elemental sulfur or sulfur compounds, or both, that cause corrosion under certain conditions of use.

    This Corrosive Sulfur Analyzer is designed to detect the presence of, or the propensity to form, free (elemental) sulfur and corrosive sulfur compounds by subjecting copper or silver to contact with an insulating liquid under prescribed conditions.


    I.Main features

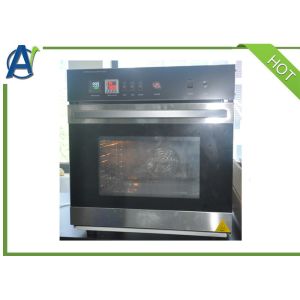

    1. Stainless steel heating box with transparent observation window for easy operation, and a hole for inserting a thermometer at the top
    2. The surface of the instrument is treated with electrostatic spray molding, which is corrosive and easy to clean
    3. Digital display timer, with an accuracy deviation of no more than 2min per hour, recording the test time, and equipped with a time alarm.


    Technical Specifications

    1Applicable standardsSH/T0804,ASTM D1275,IEC 62535
    2Temperature controlling methodPT100 temperature sensor,digital display
    3Temperature controlling rangroom temperature~150
    4Temperature controlling accuracywithin ±1ºC
    5Timing methoddigital timer
    6Total power1.5KW
    7Standard siliver test stripcold rolled 20×40×0.5mm3,purity 99.99
    8Power supplyAC220V/50Hz
    9Overall dimension600*600*650mm3
    10Weight31KG
