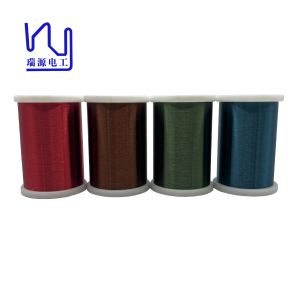

    2uew155/180 Enamel Coated Magnet Wire Costom Super Thin Multi Color Motor

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.08mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    2uew155/180 Enamel Coated Magnet Wire Costom Super Thin Multi Color Motor

    2UEW155/180 Costom Super Thin Multi Color Enameled Copper Wire For Motor

    The temperature resistance level of our green enameled copper wire reaches 155 degrees, which enables it to work safely and reliably under high temperature conditions. In some special scenarios, temperature resistance is crucial, and our enameled copper wire can meet this requirement. Users can use it with confidence without worrying about signal transmission problems caused by high temperature to ensure the normal operation of the equipment.

    CharacteristicsTechnical requestsTest Results
    Sample 1Sample 2
    SurfaceGoodOKOK
    Bare Wire Diameter0.080±0.0020.450.45
    Coating Thickness≥ 0.008 mm0.0110.012
    Overall Diameter≤ 0.094 mm0.0910.092
    Conductor Resistance≤ 3.608 Ω/m3.4563.443
    Elongation≥ 16 %1919
    Breakdown Voltage≥ 425 V15781496
    Pinhole Test≤ 5 holes/5m00
    Continuity≤ 40 holes/30m00
    Test ItemsTechnical RequestsResults
    AdhesiveCoating layer is goodOK
    Cut-through200℃ 2minsno breakdownOK
    Heat Shock175±5℃/30minno crackOK
    Solder Ability390± 5℃ 2SecNo blister, no expansion, no shedOK

    Name

    0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid

    Key word

    0.04mm 0.05mm 0.07mm 0.08mm 2UEW155 Color Copper Wire Enameled Coating Solid

    Insulationh

    Enamel

    Thermal rating

    155

    Diameter of the enameled copper wire

    0.08mm
