    IEC 60598-1 Stepless Regulation LED Test Equipment Semi - Lamp Curve Operation Test

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN995
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : L/C, T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC 60598-1 Stepless Regulation LED Test Equipment Semi - Lamp Curve Operation Test


    IEC 60598-1 Stepless Regulation LED Test Equipment Semi-Lamp Curve Operation Test


    Standards & Clauses:


    IEC 62560-2015 "Voltage > 50V-safe Fan for constant self-ballasted LED Lamp", Table 2

    Article A2.1 of IEC61199-2014 "single cover fluorescent Lamp-Anfan"

    IEC 60598-1 / 2014 Lamps-1: testing and testing Article 4.14.2


    Samples and Restrictions:


    Semi-luminaires intended for connection to Edison screw or bayonet lampholders


    Application:


    It is used to test the bending moment effect of semi-luminaire on lamp holder to prevent lamp holder from being damaged by excessive bending moment.


    Test Principle


    Using a push-pull force gauge to connect with a semi-luminaire through a flexible cord, the force of the free bending of the luminaire is measured, and the actual bending moment value is calculated by multiplying the force arm, compared with the standard requirement.


    Structure:


    Manual testing, simple and convenient


    Technical Parameters:

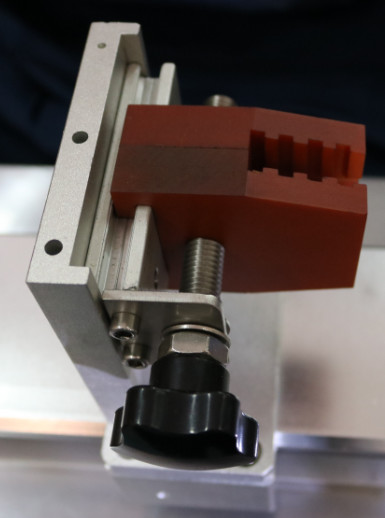

    Digital display force gauge

    Digital display, force range: 0-100N, resolution 0.1N

    Measurable length of semi-luminaires

    0-400mm

    Test requirements

    Please refer to following table:

    Adjustment method

    Stepless adjustment, the screw slider is driven by adjusting handwheel

    Extended function

    Fluorescent lamp lamphoders axial force test (G5 15N,G13 30N), conforms to IEC60598.1: 2014 clause 4.4.4 i)
