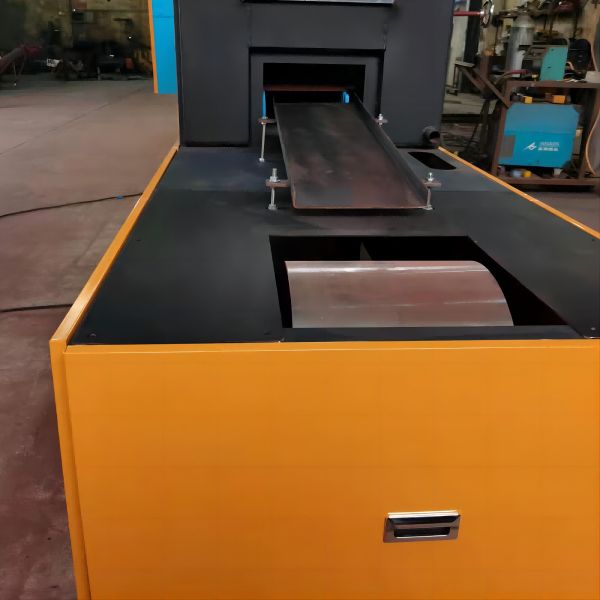

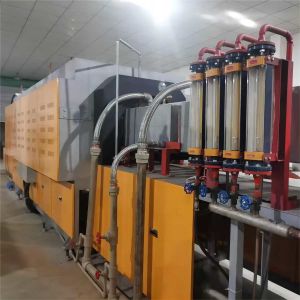

Surface Bright Treatment Stainless Steel Mesh Belt Conveyor Furnace
The advantages of stainless steel bright treatment furnace are:
1. The overall design is reasonable, the structure is simple and
compact, and it is easy to operate and use.
2. Effectively improve gas heating efficiency and reduce energy
consumption and heat treatment costs.
1﹑Technical specification
1. Rated power: 150 KW
2. Heating pressure: 5 zones
3. Main body length of heating furnace: 4800mm
4. Rated operating temperature: 1150℃
5. Steel strip width: 300 mm
6. Steel belt running speed: 30-300mm/min (frequency control)
7. Temperature uniformity in the furnace: ±5℃, instrument
temperature control accuracy: ±1℃
8. Effective cross-sectional area of furnace tube: width 330*80mm
9 Dimensions: ~20 meters long
2﹑Patent
With proven engineering knowledge and more than 20 years'
experience we can provide you the right furnace solution.
3﹑Customer Case in China
The first Aluminum-air battery graphene conductive film production
line in china
The first All-solid-state battery pilot production line in china
The first Mobile phone fast charging graphene heat dissipation film
carbonization production line
The first ITO target powder roller furnace continuous production
line in china
The first Hydrogen fuel cell industrial production line in china
The first alumina continuous fiber production line in china
4﹑Foreign Customer
5﹑Package and shipment
We will well pack the goods based on the kinds of furnace and
customer's requirement.
