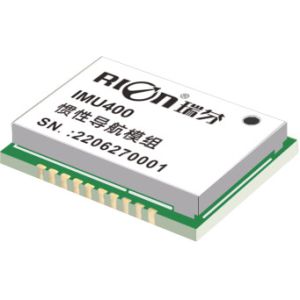

    Imu400 Multi Axis Inertial Navigation Module Ins Ttl Interface

    Ask Lasest Price
    Brand Name : RION
    Model Number : IMU400
    Certification : CE, FCC,ROHS , ISO
    Price : US$29.50
    Payment Terms : T/T or Paypal
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    Imu400 Multi Axis Inertial Navigation Module Ins Ttl Interface

    IMU400 Multi Axis Inertial Navigation Module INS TTL Interface For Automated Agricultura Machinery Intergrated


    GENERAL DESCRIPTION

    IMU400 is a gyroscope IMU specialized in agricultural machinery autopilot navigation applications, built-in industrial three-axis gyroscope and three-axis accelerometer. The product can still output smooth attitude data in the case of high vibration characteristics of agricultural machinery. It is developed based on MEMS inertial measurement platform. Through the dynamic attitude algorithm of the angular rate of the gyroscope, real time output the dynamic inclination, horizontal azimuth, three-axis angular rate, three-axis acceleration and forward axial body acceleration of the object ; It can also provide real-time feedback counting output through Z-axis single axis integral output to make the front wheels of agricultural machinery turn at a precise angle; This product is specially used for automatic agricultural machinery, precision operation, and efficiency. It is an essential component of the new generation of automatic precision agricultural control.


    KEY FEATURES

    ★ Horizontal azimuth angle & attitude angle output

    ★ Real time output angular rate

    ★ Light weight

    ★ Long life,strong stability

    ★ Forward axis acceleration output

    ★ All solid state

    ★ Compact & light design

    ★ TTL output

    ★ 3.3VDC power supply


    APPLICATION

    ★ Automated agricultural machinery

    ★ Precision agriculture

    ★ Combination harvester

    ★ Cultivator


    SPECIFICATION


    IMU400Parameters
    Triaxial attitudeAzimuth Angle ±180°,Roll ±180°,Pitch ±90°
    Operational bandwidth>100Hz
    Resolution0.01°
    Nonlinear0.1% of FS
    GyroTriaxial gyro range250°/s
    Bias instability(allan)4.5°/h
    Angle random walk coefficient(allan)0.25°/sqrt(h)
    Bias stability(10s mean value )8.5°/h
    Gyro bias(@Temp. -10℃~+65℃)±0.25°/s(RMS)
    AccelerometerRange±4g / ±8g(optional)
    ResolutionTest conditions @4g range0.001g
    Accuracy1mg
    Bias instability(allan)0.05mg
    Speed random walk coefficient(allan)0.015m/s/sqrt(h)
    Bias stability(10s mean value)0.15mg
    Starting time500ms
    Input voltageDC3.3V(Ripple<50mVpp)
    Current70mA
    Working temperature-40 ~ +80℃
    Storage temperature-40 ~ +85℃
    Vibration5g~10g
    Impact200g pk,2ms,½sine
    Working life10 years
    Output rate5Hz,15Hz,25Hz,35Hz,50Hz,100Hz can set
    Output signal3.3V-TTL
    MTBF≥98000 Hours/time
    Impact resistance100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti vibration10grms,10~1000Hz
    Weight≤5g
