    SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab 371HP

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ3259N384PB3
    Certification : ISO/3C/BV/IFA/SGS
    Price : negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 3000 per month
    Delivery Time : 25-30 days after received your advance payment
    • Product Details
    • Company Profile

    SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab 371HP

    Description:


    SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab Yellow

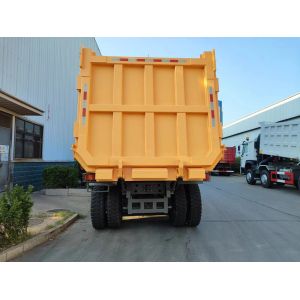

    HOWO mining dump truck adopts unilateral high-strength skeleton cab, simple shape, hard, open vision; Good sealing can ensure that your vehicle is always in a safe and comfortable driving environment; There are two lights at the top of the front and rear of the cabin for night work.


    Configuration HW19710 gearbox, HW70 power, torque up to 700NM.

    With 500 litre Type D fuel tank (400 litre fuel tank is optional), the vehicle workload meets your requirements.


    Sinotruk independently developed a new front axle assembly, using integral cast winch beam, 500x210 reinforced brake and other truck parts assembly technology.

    The rear axle adopts AC26 mining drive axle, the main reducer structure design is more reasonable, the reinforced casting axle housing and drum brake, the vehicle carrying capacity and braking capacity in the domestic leading level.


    Wheels and tires :10.0/2-25 wheel assembly, standard 14.00-25-36PR tires, the original 14.00R25-36PR tires, is specially customized for mining Bawang with high load capacity, high wear resistance of special tires.


    Specification:


    Tipper Dump Truck LHD SINOTRUK HOWO70 Mining 10Wheels 371HP 70tons ZZ5707S3840AJ
    ModelZZ3259N384PB3
    Drive Type6×4
    Engine
    WD615.47 , 371HP( Euro II)
    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
    Displacement : 9.726L
    CabinHW7D unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat)
    TransmissionHW19710(10 forwards & 2 reverses)
    Front Axle1×HF12 ( 12 Tons)
    Driving AxleAC26, 26Tons
    SteeringZF8118 hydraulic steering with power assistance.
    ClutchSingle-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
    Rim/ Tire14.00-25,14.00R25,Radial tire
    Wheel base3800+1500(mm)
    Overall dimension8700×3300×3670(mm)
    Cargo body5800×3100×1600(mm),Bottom:16mm, Side:12mm
    The curb weight23000(Kg)
    Gross weight70000 kg
    Max. speed50km/h
    ColorWhite, red, green, golden and so on.


    Applications:


    SINOTRUK Mining Dump Truck is a heavy engineering design personnel concentrated research and development, first suitable for all kinds of open-pit coal mines, steel mills, hydropower station construction, docks, poor road conditions, poor operation in the area of short-distance transport business development of this car, in terms of specific user groups, with high economic and social benefits.


    Competitive Advantage:


    1) We can design and produce various cargo structures according to your requirements, so that it has light maintenance weight, high rigidity and high carrying capacity
    2) High-strength steel is used to make it have a long service life
    3) The domestic advanced T-type hydraulic control system is adopted to avoid misoperation, safe and efficient operation.
    4) Cabin appearance is good, safe and reliable
    5) Low fuel consumption
    6) The engine is strong enough
    7) Various types of trucks are available to meet your requirements
    8) The world's top technology products are used for key components

    9)competive price, cost-effective
    10)quick and efficient spare parts supply bring you more convenient

    11)fast delivery time, we can arange production according to your needs exactly and quickly
