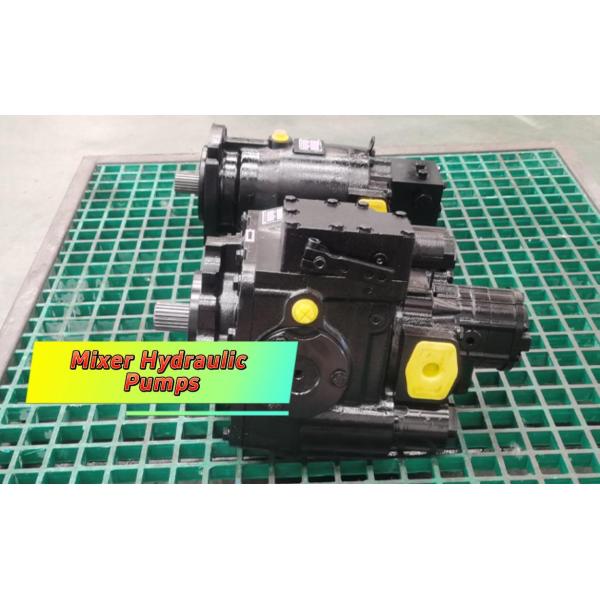

High Pressure Hydraulic Piston Pump For Construction Machinery
Mixer Truck
Product Description:
Highland hydraulic pump of the mixer truck is a closed hydraulic
transmission system composed of components that interact with each
other. The engine power in the mixer is transmitted to the
hydraulic pump through the transmission shaft. The force of
Highland hydraulic pump then propels the hydraulic motor, which
energizes the reducer to rotates the mixing tank. In turn, this
produces the desired functions such as loading, mixing, and
unloading.
Features:
Highland Mixer Truck Hydraulic Pumps have been designed to robustly
meet the demands of harsh working conditions. It has an efficient
swash plate structure, and is well suited to the closed loop
circuit system of mixer hydraulic pumps. It can facilitate a manual
servo and hydraulic variable control mode and, what's more, is
variable displacement with an integrated charging oil pump.
Technical Parameters:
| PV hydraulic pump and MF hydraulic motor series | 20 | 21 | 22 | 23 |
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 90.5 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | PV series hydraulic pump
hydraulic oil emptying | kg | 45 | 53 | 63 | 78 |
MF series hydraulic motor
hydraulic oil emptying | kg | 30 | 34 | 40 | 47 |
Applications:
Highland mixer truck hydraulic pump motor hydraulic transmission
system is an ideal choice due to its various features. It enjoys
reliability, lightness, small size, and attractive appearance. In
addition, it also has stable rotation, reliable performance, and
simple operation. The long service life is another benefit of this
system. It can be used to both mix concrete and to transport with
agitating, both of which can ensure the quality of the concrete.
Support and Services:
Highland Mixer Hydraulic Pump Technical Support and Service
We provide complete technical support and service for our Mixer
Hydraulic Pump products. Our technical support team is available to
answer your questions and assist with troubleshooting.
FAQ:
Q1: What is the brand name of the Mixer Hydraulic Pump?
A1: The brand name of the Mixer Hydraulic Pump is HIGHLAND.
Q2: What is the model number of the Mixer Hydraulic Pump?
A2: The model number of the Mixer Hydraulic Pump is PV23.
Q3: Where is the Mixer Hydraulic Pump made?
A3: The Mixer Hydraulic Pump is made in CHINA DEZHOU.
Q4: What kind of certifications does the Mixer Hydraulic Pump have?
A4: The Mixer Hydraulic Pump has PATENT AND ISO CERTIFICATE.
Q5: What is the minimum order quantity for the Mixer Hydraulic
Pump?
A5: The minimum order quantity for the Mixer Hydraulic Pump is 5
PCS.
